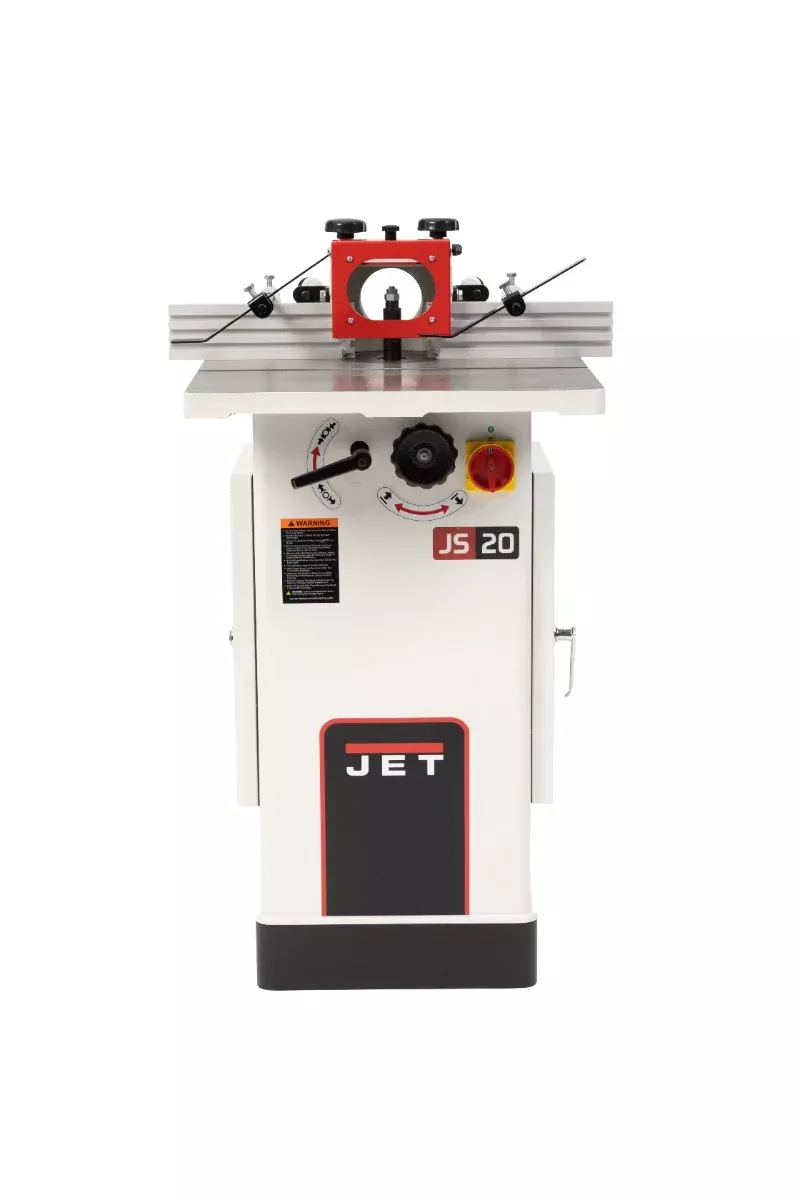

724020, Jet JWS-20CS 1.5HP SHAPER
If you’re looking for a space-saving shaper for your shop, the JET JWS-20CS Shaper is what you need. This compact powerhouse features an 8,000 and 10,000 RPM reversing 1-1/2HP motor. The sleek 18″(L) X 20″(W) precision-ground cast iron table provides a durable work area for various projects. Safe, easy cutter setup is assisted by a positive detent spindle lock. The independent left and right fences feature micro-adjustment and a built-in 4” dust port. When adding the new JET JWS-20CS Shaper to your shop today, you’ll know why JET products are “Built Better to Build Better”.
Features:
- Powerful 1-1/2HP motor delivers dependable power, even on heavy jobs
- Independent left and right fences feature micro-adjustment and have zero-clearance capability
- Fully enclosed, heavy-duty steel stand has a removable cover for easy motor access
- Forward/reverse switch for left and right-hand operation
- Extra-large handwheel is conveniently located for fast, easy, and accurate spindle height adjustments
- 1/2″ and 3/4″ interchangeable spindles and router bit collets for use with shaper cutter and router bits
- Two adjustable work hold-downs to secure your work while shaping
- Two reversible spindle speeds let you select the best speed and torque for different cutter diameters
Specifications:
- Dust Collection Minimum CFM Required (CFM): 300
- Dust Port Outside Diameter (In.): 4
- Electrical Controls: Manual
- Motor Amps: 15/7.5
- Motor Power (HP): 1-1/2
- Motor Voltage (V.): 115/230
- Prewired Voltage (V.): 115
- Reversible: Yes
- Style (Type): Floor standing Model
- Table Height from Floor (In.): 33-1/2
Includes:
- (1) Shaper
- (1) Dust Chute
- (1) Miter Gauge
- (1) Draw Bar & Nut
- (1) 1/2” Spindle Assembly
- (1) 3/4” Spindle Assembly
- (1) 1/4″ Router Collet
- (1) 1/2″ Router Collet
- (1) Arbor Wrench
- (1) 3mm Hex Key Wrench
- (1) 12mm / 14mm Open End Wrench
