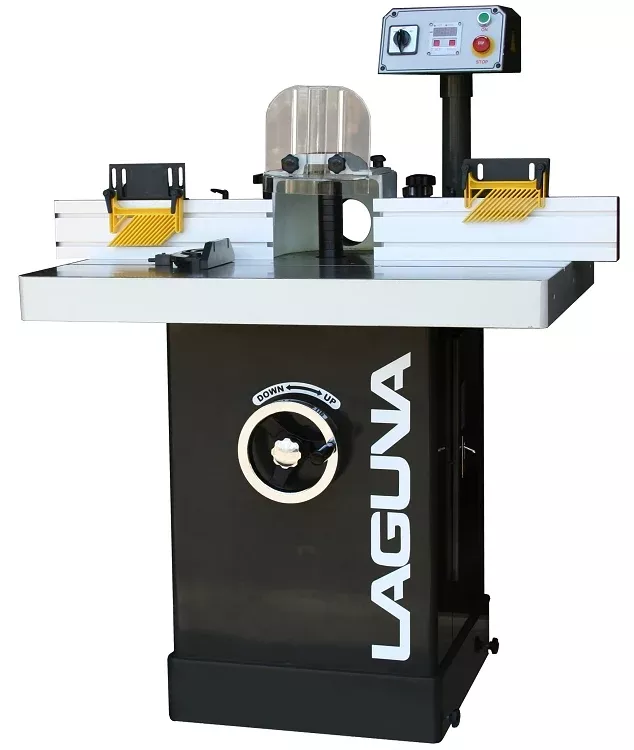

MSHAP5010-0130, Laguna Tools Pr Shaper 5HP 220 Volt 1 phase
The brand new Laguna Pro Shaper combines a precision shaperwith features normally found only in much higher priced machines.
For starters, the table measures an impressive 31″ x 39″ and is predrilled to accept most power feeders. The fence has a precision micro-adjustment that is aligned by a solid steel bar. Each full revolution of the turn handle gives an exact 1/16″ adjustment to the fence. Inside you will find a heavy-duty motor available in either 5HP 220 volt single phase or 7.5 HP 220 volt three phase. Each offers 3 speeds with a unique quick change poly-groove belt system rather than the traditional V-belt. Digital readout is standard for the spindle height. The Pro Shaper is also equipped with a reversing switch and all controls are mounted with an easy access panel.
The fit and finish on this machine is top notch and even includes a wheel kit built right into the base.The Laguna Pro Shaper is designed to give you years of trouble free performance without breaking the bank.
Specifications:
- Motor: 5HP 1 phase 220V 60 HZ
- Table size:39-5/16″ X 31-7/16″ X 3-1/2″
- Spindle travel: 4″
- Spindle Sizes: 3/4″ and 1-1/4″
- Capacity Under Nut: 6″ (for 1-1/4″) & 4″ (for 3/4″)
- Router Collets: 1/4″ and 1/2″
- Spindle speeds: 5000 / 7000 / 10000 rpm
- Table Opening Diameter: 7-5/16″
- Digital Readout: Standard
- Direction: Forward/Reversing Switch
- Fence: Micro Adjustment
- Gross Weight: 850 lbs.
