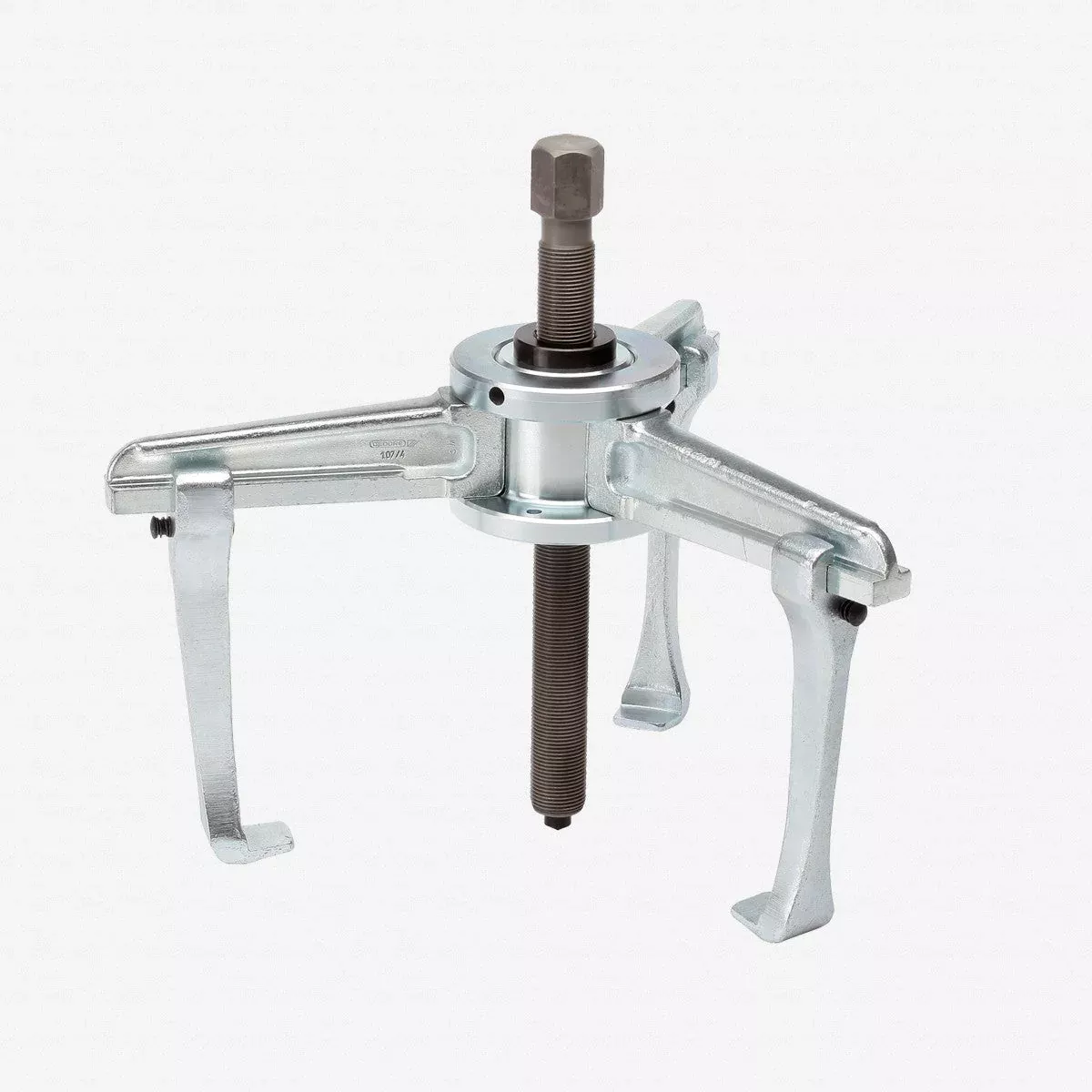

Gedore 1.07/4A1-B Universal puller, 3-arm pattern, rigid legs with leg brake 580×200 mm

Gedore 1.07/4A1-B Universal puller, 3-arm pattern, rigid legs with leg brake 580×200 mm
Just like our standard model no. 1.06, this puller is designed for all branches of industry, but particularly for the construction of electric motors
It is also suitable for removing heavy, multistage V-belt pulley wheels, flywheels, gear wheels, etc.
Pins are used to lock the arms at 120 degrees to each other on the hub
Rigid legs forged from one piece
Leg brake – prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
By reversing the legs, this tool can be used as an internal or external puller
Upgradeable with hydraulic spindle 1.06/HSP3
This puller may also be used with the hydraulic aid 1.50 without requiring any reduction bushing
On request, this puller is also available with further legs and extendable up to 6 arms
