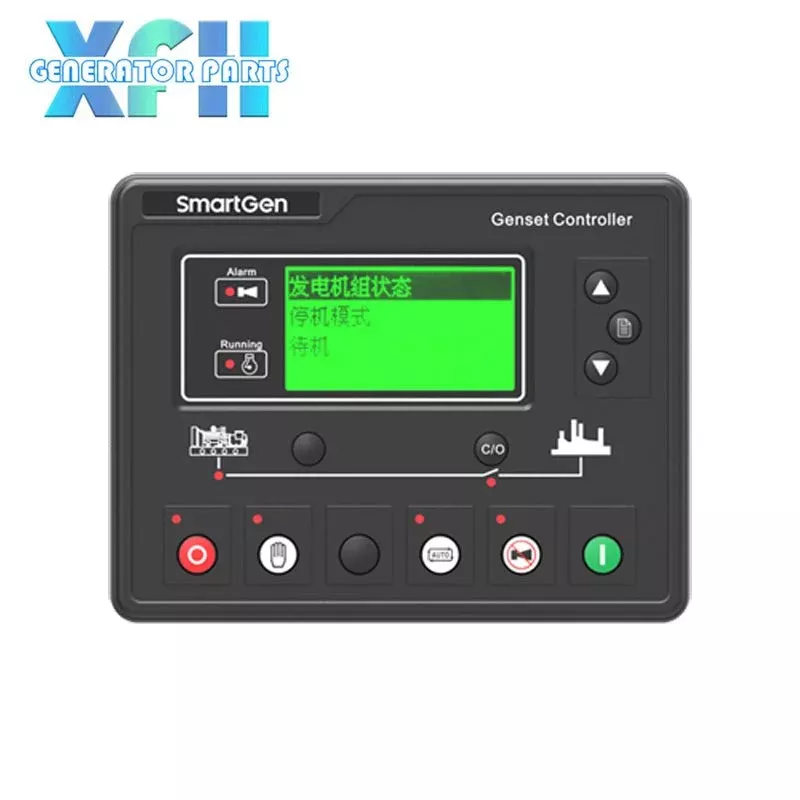

Original Smartgen HGM7110VS Genset Controller
Smartgen HGM7110VS genset controller is used for genset automation and monitor control system of single unit to achieve automatic start/stop, data measure, alarm protection and three remote (remote control, remote measuring and remote communication). Controller adjusts engine speed according to genset present power so as to realize energy saving and pollution reduction. The controller adopts large liquid crystal display (LCD) and selectable Chinese, English or other languages interface with easy and reliable operation.
|
Working Voltage |
DC8. 0V to 35. 0V, continuous power supply |
|
Overall Consumption |
<3W (Standby mode: 2W) |
|
AC Input: 3 Phase 4 Wire 3 Phase 3 Wire Single Phase 2 Wire 2 Phase 3 Wire |
AC15V ~ AC360V (ph-N) AC30V ~ AC620V (ph-ph) AC15V ~ AC360V (ph-N) AC15V ~ AC360V (ph-N) |
|
Alternator Frequency |
50Hz/60Hz |
|
Speed Sensor Voltage |
1. 0 V to 24 V (RMS) |
|
Speed Sensor Frequency |
Maximum 10,000 Hz |
|
Start Relay Output |
16A DC28V power supply output |
|
Fuel Relay Output |
16A DC28V power supply output |
|
Configurable Relay Output 1 |
7A DC28V power supply output |
|
Configurable Relay Output 2 |
7A AC250V passive output |
|
Configurable Relay Output 3 |
16A AC250V passive output |
|
Configurable Relay Output 4 |
16A AC250V passive output |
|
Configurable Relay Output 5 |
7A DC28V power supply output |
|
Configurable Relay Output 6 |
7A DC28V power supply output |
|
Case Dimensions |
197mm x 152mm x 47mm |
|
Panel Cutout |
186mm x 141mm |
|
CT Secondary Current |
Rated 5A |
|
Working Conditions |
Temperature: (-25~+70)C Humidity: (20~93)%RH |
|
Storage Conditions |
Temperature:(-25~+70)C |
|
Protection Level |
IP55 Gasket |
|
Insulation Intensity |
Apply AC2.2kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min. |
|
Weight |
0.75kg |
