- Model No. THJA26
- Gauge. 14Coating/Material. Zinc Galvanized, G90

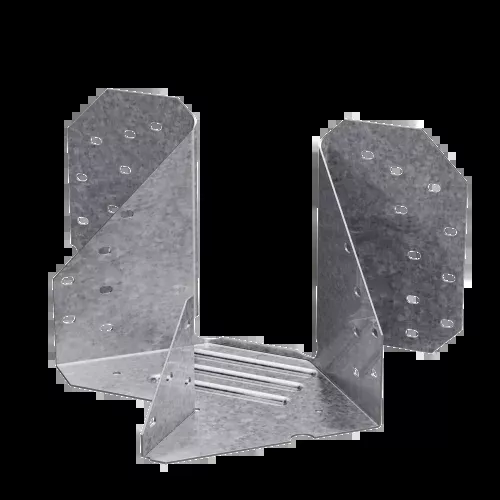

The versatile THJA26 can accommodate right- or left-hand hips (at 45° skews), and can be installed before or after the hip and jack. Can also be used for double (terminal) hips.
Installation
- Fasteners required. Install with 16d common nails and 10d x 1-1/2 in. nails
- All members must be fastened together to act as a single unit.
- Shall be attached to a double-girder truss to allow for required minimum nail penetration. See load table notes for girder truss requirements.
Download Specs Sheet: THJA26-LTHJA26.pdf
