Product Description

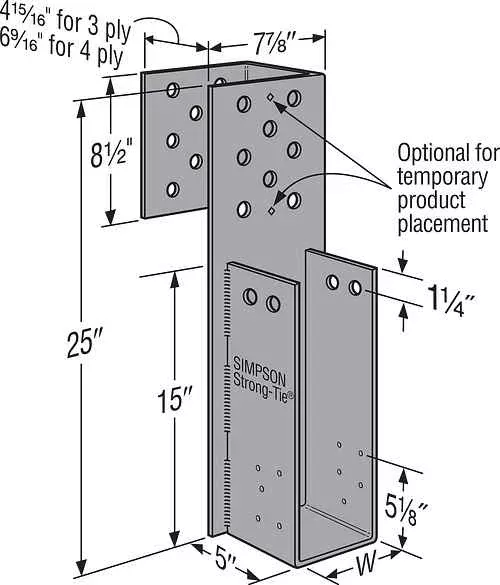

The THGW is an extra-high-capacity bolted hanger designed for installing multi-ply girder trusses. This welded hanger attaches to a vertical web and features a unique wraparound shape that supports higher loads with a double-shear design.
Installation
- Fasteners required. Install with 10d common nails and 3/4 in. machine bolts. See Specifications
- All multiple members must be fastened together to act as a single unit
- Maximum 11 7/8″ bottom chord in the carrying member to allow for the minimum bolt end distance
- Bolts must be installed symmetrically when fewer than the maximum number of bolts are used on the backplate
- Girders must have adequate lateral bracing to prevent excessive displacement due to secondary torsional stresses (refer to ANSI/TPI 1-2014 Section 7.5.3.5)
This is a Special Order item, or Made to Order by Simpson Strong-Tie, it is non-refundable. Please verify that all configurations / specifications are correct before checking out.
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: THGB-THGBH-THGW-THGBV-THGBHV-THGWV.pdf
