- Model No. PGT2E-R50
- Pipe Diameter. 2-3/8 in. outside pipe diameter
- Gauge. 12
- Width (in.) 7.25
- Height (in.) 2
- Coating/Material. Zinc Galvanized, G90
- Installs With. PGT2E attaches to rails with (4) 1/4 in. x 1-1/2 in. Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws or 1/4-in. lag screws (follow code requirements for predrilling)
- Product Includes. Sold as full carton with (50) attachment plates, (50) front straps and (55) 1/4-in. diameter x 3/4-in. long hex-head bolts

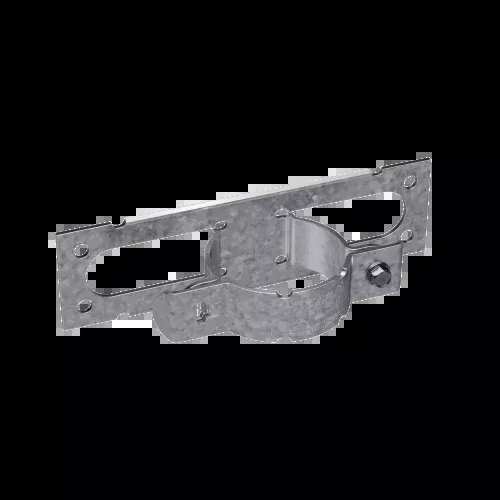

The PGT is a tie designed for attaching wood fence rails to metal fence posts. This pipe grip tie can be used in new construction or to replace damaged wooden posts. Ideal for a variety of conditions, the PGT helps to eliminate the rot and failures to which wood fence posts are most prone, thus extending the life of a fence.
Key Features
- A solid connection with quick and easy installation
- Ideal for replacing damaged wood posts or for new fence construction
- Galvanized steel construction for durability and corrosion resistance
Installation
- Install on vertical pipes, offsetting corners to allow for the correct rail alignment.
- Use three to four PGTs per pipe; line up to stringline.
- Tighten PGT with one 1/4″ hex-head bolt (supplied).
- Attach PGT to rails using four 1/4″ x 1 1/2″ Strong-Drive SDS Heavy-Duty Connector screws (not supplied). 1/4″ lag screws may be substituted. Follow the code requirements for predrilling.
- Field bend PGT flanges to fit corner and angled conditions (bend one time only).
Download Specs Sheet: PGT_Pipe_Grip_Ties.pdf
