- Model No. MSTCM40
- Gauge. 16
- Width (in.) 3
- Length (in.) 40 1/4
- Coating/Material. Zinc Galvanized, G90

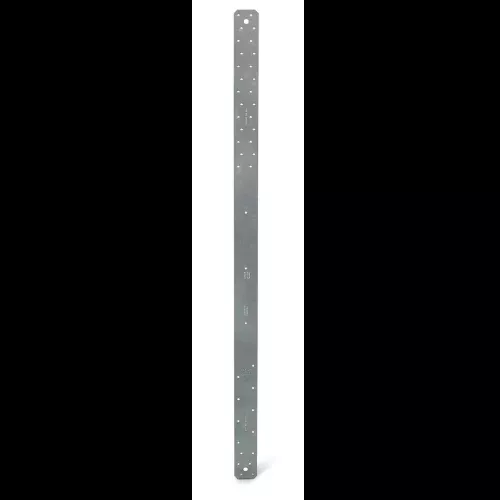

The MSTCM is designed to resist tension loads in wood-to-masonry uplift applications that use either concrete or grout-filled concrete masonry units (GFCMU). This medium strap tie utilizes a staggered nail pattern to help minimize wood splitting. The high-capacity MSTCM also features countersunk nail slots for a lower nailing profile.
Key Features
- Load-rated, precut strap designed for quick installation and optimal performance
- Designed to resist wind and seismic forces
- Attaches wood framing to concrete or grout-filled concrete masonry units including floor-to-floor clear span application
Installation
- Install with 16d sinkers and (a) 1-1/4 in. x 2 in. Titen 2 screws for GFCMU or (b) 1-1/4 in. x 1-3/4 in. Titen 2 screws for Concrete
- Attaches to concrete or GFCMU and wood framing
- Minimum end and edge distance for Titen Turbo screws is 1 1/2″
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: MSTAM-MSTCM_Strap_Ties.pdf
