- Model No. ICFVL6
- Gauge. 14
- Width (in.) 3 1/2
- Length (in.) 6
- Coating/Material. Zinc Galvanized, G90

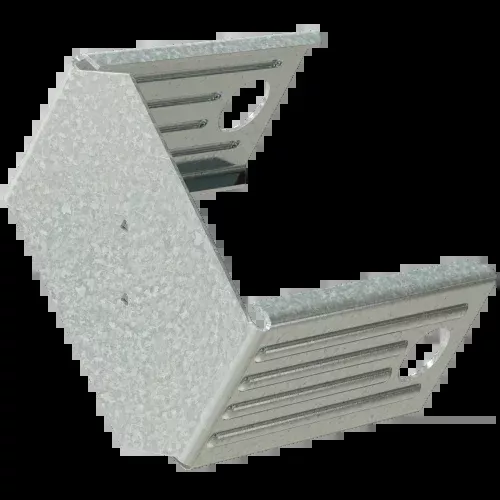

The ICFVL6 ledger connector system is engineered to address the challenges associated with attaching wood or steel ledgers to insulated concrete form (ICF) walls.
The ICFVL6 supports a maximum ICF wall thickness of 3 1/4″. This system is designed to deliver both vertical and lateral in-plane performance. The embedded legs of the ICFVL6 feature embossing for enhanced stiffness, and the strategically positioned hole facilitates the flow of concrete through and around the connector.
Its advantages over traditional anchor bolting include improved on-center spacing in most instances, expedited installation, and a lack of protrusions.
Also available in 8-inch, ICFVL8. For wood ledger applications, use ICFVL-W or ICFVL-CW.
Download Specs Sheet: ICFVL_Ledger_Connector_System.pdf
