- Model No. HRC1.81

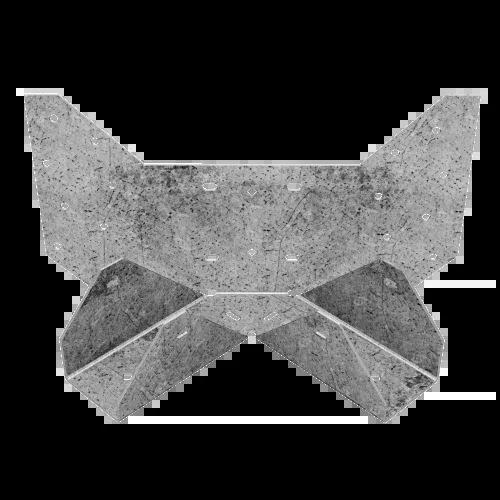

- Description. Hip Ridge Connector
- Material. 16 gauge
- Finish. Galvanized
HRC is a field slopeable connector that attaches hip roof beams to the end of a ridge beam. The HRC may be sloped downward a maximum of 45°.
Installation
- Does not include fasteners; use all specified fasteners in spec document.
- On end of ridge – use optional diamond holes to secure the HRC. Bend face flanges back flush with ridge, and complete nailing.
- On face of ridge – adjust to correct height and install nails.
- Double bevel-cut hip members to achieve full bearing capacity.
- The HRC may be sloped to 45° with no reduction in loads.
Download Specs Sheet: HRC-HHRC_Hip-Ridge_Connectors.pdf
