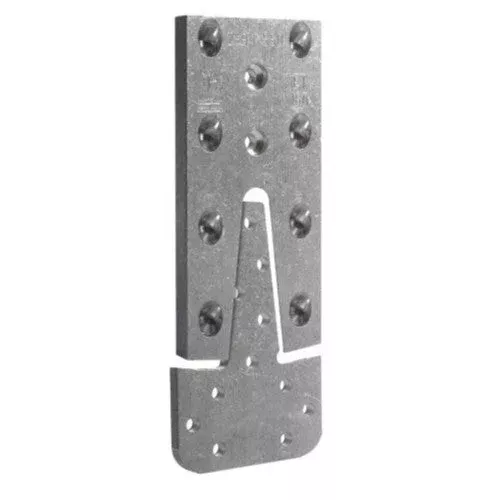

The ETB hidden connector provides a load-tested beam connection without any visible hardware. Interlocking plates are fastened onto each member and lock together for a secure structural connection.
Installation
- Rout a 3/8″ (10mm) deep pocket into the side of the supporting beam as shown for the lower plate.
- Install lower plate with 16d hot-dip galvanized nails (not included in kit).
- Install horseshoe plate onto end of supported beam using SCRB screws supplied in kit. Screws are installed at a downward angle (approx. 45°).
Note: Product dimensions and/or Screw holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: ETB_Hidden_Connector_Kit.pdf
