Mail itPrint itTechnical Specifications
Product Features
- Certified welds for confidence in strength and loading
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
Product Description

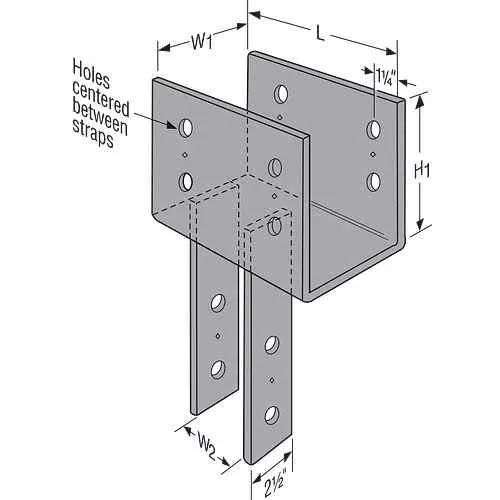

- Model No. ECCU44ROT (Rotated Straps)
- Finish: Gray Paint
- Length: 6-1/2″
- Material: Steel
- Beam size: 4x
- Height: 4″
- Post size: 4x
- Width: 3-5/8″
- Product Guide & SPECS : View Specifications
The ECCU is designed for column-beam connections in end-of-beam applications requiring uplift values. The seat of the column cap provides additional surface area for bearing that extends beyond one side of the column. The ECCU helps to distribute the load from the beam and provide support for the connection.
Options
- Contact us for Configurable Options and Special orders
- Straps may be rotated 90°.
- For special, custom or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90° is limited by the W1 dimension.)
This is a Special Order item, or Made to Order by Simpson Strong-Tie, it is non-refundable. Please verify that all configurations / specifications are correct before checking out.
Note: Productdimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: CC-ECC-ECCU_Column-Caps.pdf
