Product Description
The ECCLQMD embedded column cap is designed for use in raised pier foundations and applications where heavy beams rest on concrete or concrete block columns. The heavy-gauge beam seat and unique Simpson Strong-Tie SSTB anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The ECCLQMD-KT is a variation that incorporates an additional seat to support a third member at the corner connection, ideal for attaching perimeter deck joist/beam.

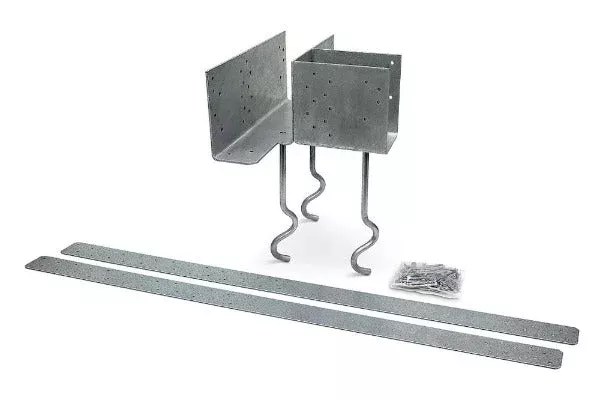

- Model No. ECCLRQMD3.62-KT (Kit includes MSTQM straps & Screws)
- Beam Orientation. Right
- Main Channel Width (W1) (in.) 3 5/8
- Side Stirrup Width (W3 and W4) (in.) 3 5/8
- Main Channel Length (L1) (in.) 16 1/2
- Side Stirrup Length (L2) (in.) 7 3/4
- Material. 7 gauge Steel
- Finish. Column Cap-Simpson Strong-Tie Gray paint
- Product Guide & SPECS : View Specifications
Key Features
- MSTQM straps to make the connection from the ECCLQMD to the wall framing
- Screws are configured to provide high uplift design values
- Certified welds for confidence in strength and loading
- SSTB offset allows flush installation to edge of pier
- SSTBs spaced to fit standard CMU cells
Installation
- Install 1/4″ x 2 1/2″ Strong-Drive SDS Heavy-Duty Connector screws (provided), in all round holes. (Lag screws will not achieve the same load.)
- Min. (4) 7 vertical rebar (total for pier).
- No additional welding is allowed.
Options
- Contact us for Configurable Options and Special orders
- Available in widths up to nominal 7-1/8″ width.
- For variable widths on side stirrups, specify W3 (3 1/4″ to 7 1/8″) and add an “X” to the end of the core model name. Example: ECCLQMD5.50GX-KT, W3 = 3 5/8″.
- ECCLQMD is available in left or right side beam orientations. Specify ECCLLQMD or ECCLRQMD.
This is a Special Order item, or Made to Order by Simpson Strong-Tie, it is non-refundable. Please verify that all configurations / specifications are correct before checking out.
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: CCQM_CCTQM_ECCLQM_CCCQM_ECCLQMD.pdf
