Product Description

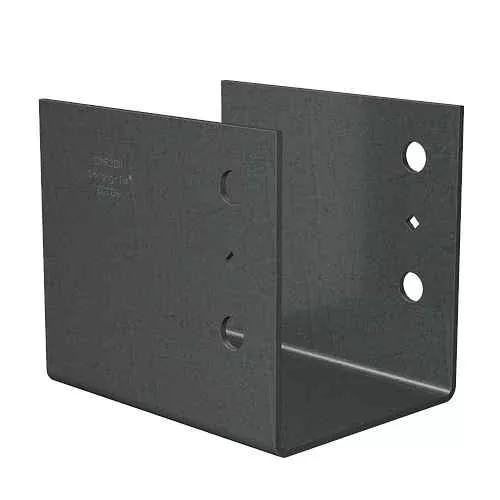

The ECCO is designed to provide strong column-beam connections in end-of-beam applications on top of steel members. The column cap features a design without legs enabling a field-welded attachment to steel columns and beams. The seat of the column cap provides additional surface area for bearing that extends beyond the one side of the column. This helps to distribute the load from the beam and provide support for the connection.
- Model No. ECCO7
- Beam Width (in.) 6 3/4
- Dimensions W1 (in.) 6 7/8
- Dimensions L (in.) 10 1/2
- Dimensions H1 (in.) 8
- Material. 3 gauge Steel
- Finish. Simpson Strong-Tie Gray paint
- Product Guide & SPECS : View Specifications
Key Features
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
Installation
- Use all specified fasteners; View Specifications
- Bolt holes shall be a minimum of 1/32″ to a maximum of 1/16″ larger than the bolt diameter (per 2018 NDS, section 12.1.3.2); bolt holes should be drilled from one side all the way through the beam to maintain hole tolerances.
- Contact engineered wood manufacturers for connections that are not through the wide face
Options
- Contact us for Configurable Options and Special orders
- For special, custom, or rough-cut lumber sizes, provide dimensions.
- ECCO may be ordered for field welding to pipe or other columns. Weld by designer.
This is a Special Order item, or Made to Order by Simpson Strong-Tie, it is non-refundable. Please verify that all configurations / specifications are correct before checking out.
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: CC-ECC-ECCU_Column-Caps.pdf
