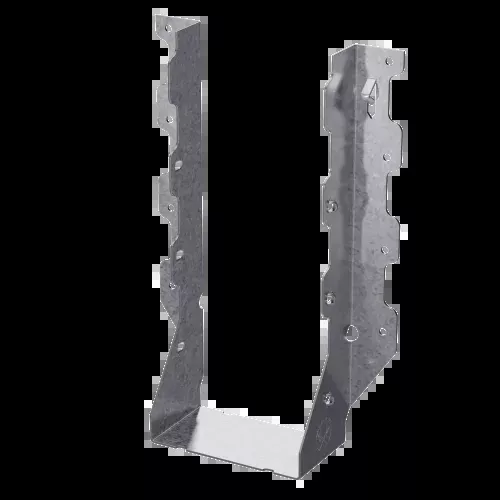

The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.
Key Features
- Cannot be modified
- Works for a wide range of applications
- Features speed prongs used to temporarily position and secure the connector for easier and faster installation
- LUS-series hangers are tested, load rated and code compliant
Installation
- Use all specified fasteners; see Load Tables
- Joist nails must be driven at an angle through the joist or truss into the header to achieve the table loads.
- Not designed for welded or nailer applications.
Load Tables / Values / Installation
- Face-Mount Hangers – Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers – Solid Sawn Lumber (SPF / HF) Tables
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: LUS-HUS-HHUS-HGUS.pdf
