Mail itPrint itTechnical Specifications
Product Description
- Model No. HUS214-2TF
- Joist Size. Double 2×14
- Gauge. 14
- Width (in.) 3-1/8
- Height (in.) 13-1/8
- TF (in.) 2-1/4
- Coating/Material. Zinc Galvanized, G94

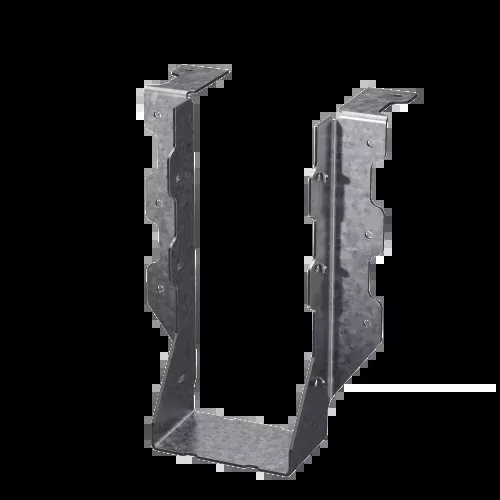

HUSTF is a heavy-duty hybrid hanger that incorporates the advantages of both face-mount and top-mount hangers. This top-flange hanger features double-shear nailing where the nail is installed into the joist and header, distributing the load through two points on each joist nail for greater strength. This economical joist hanger cannot be modified.
Key Features
- Features an embossed top flange that provides additional connection strength
- Designed with double-shear nailing combined with face-nailing for high loads
- HUSTF-series hangers are tested, load rated and code compliant
- Contact us for Configurable Options and Special orders, Some products available in HDG
Installation
- Use all specified fasteners
- Fasteners required. 0.162″ x 3-1/2″ nails
- Not acceptable for nailer or welded applications
- With 3x carrying members, use 0.162″ x 2 1/2″ nails in the header and 0.162″ x 3-1/2″ nails in the joist
This item is Special ordered or Made to Order by Simpson Strong-Tie, it is non-refundable with varied lead times. Please verify that all configurations / specifications are correct before checking out.
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: HUTF_HUSTF_Heavy_Top-Flange_Joist_Hangers.pdf
