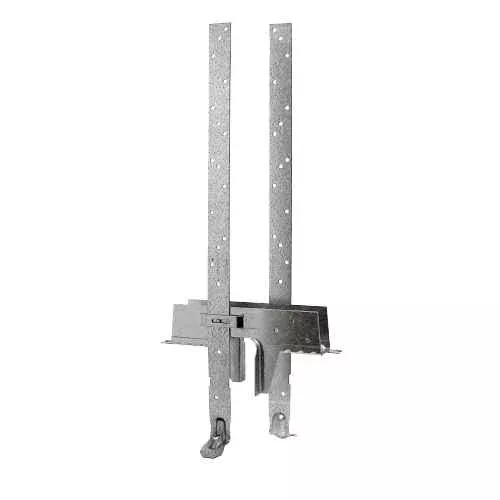

The DETAL provides an engineered method to attach single-ply trusses securely to concrete and masonry walls. This high-capacity embedded truss anchor combines dual embedded anchors with a structural moisture-barrier seat that serves to protect the truss and also provide additional lateral and uplift capacity. The embedded anchors of the DETAL are preattached to the moisture barrier through slots that allow some adjustment during installation to avoid rebar.
Model No. DETAL20Ga. 16; barrier 18H (in.) 15 3/4Coating/Material. Zinc Galvanized, G90
Key Features
- Tabs at each end of moisture-barrier seat, for optional attachment to the form board in concrete tie-beam applications
- Moisture-barrier seat is partially embedded in the concrete or grout
- The strap can be installed straight or field-bent around truss or rafter membersLoad rated for wind and seismic forces
Material. 16 gauge (barrier – 18 gauge)Finish. Galvanized
Download Specs Sheet: META-HETA-HHETA-HETAL-DETAL-TSS-TBP8.pdf
