- Model No. THASL29-2
- Skew. Left
- Height. 9 7/8
- Width. 3 1/8
- Gauge. 16
- Coating/Material. Zinc Galvanized, G90

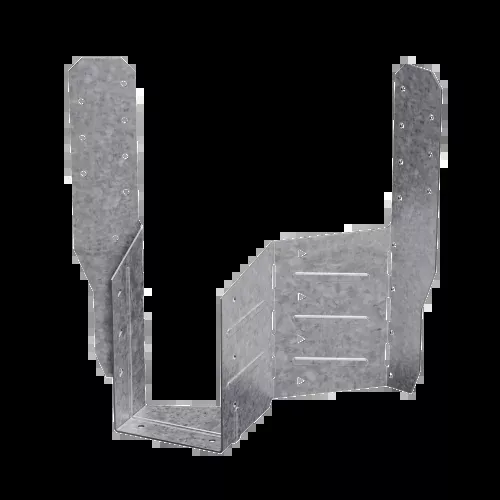

The THASR/L is designed to support trusses and beams. This versatile U-shaped hanger combines the height adjustability of the THA with field adjustability. These key features provide maximum flexibility for the installer. Shipped at 22 1/2° right or left, the THASR/L hangers can be field-skewed from 22 1/2° to 75°.
Key Features
- Eliminates the need for special orders
- The THASR/L29, 29-2 and 422 are replacing the former 218, 218-2 and 418 versions
- The THASR/L single- and two-ply versions have straps 9″ tall; the 4x version has 22″ straps to fit more parallel-chord truss applications
- The versions have only one acute side bend line to ease design and installationJoist fasteners are only required from one side for skews greater than 22 1/2°Rated for installation with either nails or Strong-Drive SD Connector screws
Installation
- Use all specified fasteners; see Specifications.
Download Specs Sheet: THASR-THASL_Adjustable_Skewable_Truss_Hangers.pdf
