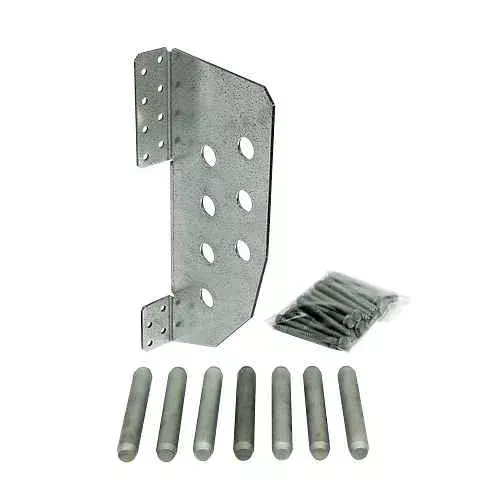

- Model No. HCJTZ
- Description. Concealed Joist Tie with Pins
- Material. 10 gauge
- Finish. ZMAX galvanized
- Dowels and screws included
- Product Guide & SPECS : View Specifications
The HCJTZ is a concealed connector. It can be installed three ways: with no routing of header/post or beam, a routed header/post or a routed beam. It is part of a concealed connector system that includes the CPTZ and CBTZ.
The HCJTZ is a heavy concealed beam tie to be used with large glulam beams resisting heavy loads. The HCJTZ features a unique shape that allows installers to insert the connector into the end of the beam without a visible slot cut into the bottom of the beam.
Installation
- The HCJTZ is supplied with all dowels and screws required. Screws require a hex-head driver.
- Router end of beam for screw heads for flush installation.
- The carried member may be sloped up or down to 45° with full table loads.
Download Specs Sheet: CJTZ-HCJTZ_Light_and_Heavy-Duty_Concealed_Joist_Ties.pdf
