- Model No. THJU26-W
- Gauge. 12
- Width (in.) 8 1/8
- Height (in.) 5 3/8
- B (in.) 3 1/2
- Coating/Material. Zinc Galvanized, G90

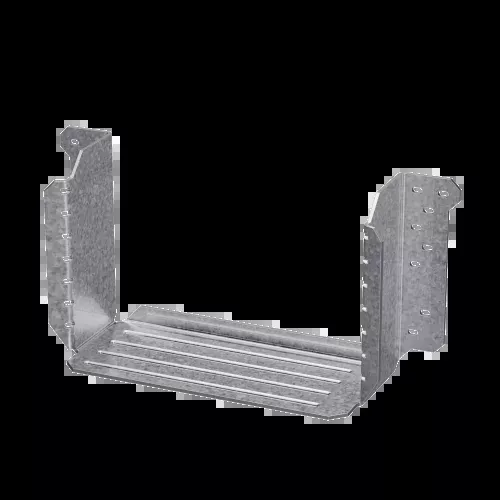

The THJU hip/jack hanger offers the most flexibility and ease of installation without sacrificing performance. The U-shaped hanger works for right- and left-hand hips and can be ordered to fit a range of hip skews (up to 67 1/2°) as well as various single and 2-ply hip/jack combinations. Also can be installed before or after the hip and jack.
The wide seat of THJU26-W accommodates a 2-ply hip and 2-ply jack combination with a 45° maximum hip skew, or a standard single-ply hip/jack configuration with a maximum 67 1/2° hip skew. Intermediate seat widths are available for other hip/jack or hip/hip combinations.
Installation
- Fasteners required. Install with 10d common nails
Download Specs Sheet: THJU.pdf
