Product Description
- Model No. EPB66-12
- Gauge. Base plate 12 Ga.
- W (in.) 5-1/2
- H (in.) 3
- L (in.) 5-1/2
- Coating/Material. Simpson Strong-Tie Gray Paint
- Fasteners required. (12) 0.162″ x 3-1/2″ Nails

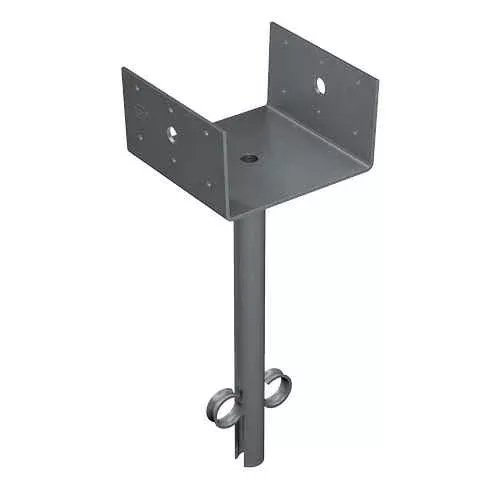

These cast-in-place post bases provide a secure connection to the concrete and the code-required 1″ standoff to help prevent rot at the post end.
Features:
- Connection Type: Designed to provide an elevated post base and cast-in-place into concrete.
- Lumber Size: Intended for use with posts/columns.
- Elevated Standoff. Allows 1″ to 2 1/2″ clearance above concrete
- Contact us for Configurable Options and Special orders
This is a Special Order item, or Made to Order by Simpson Strong-Tie, it is non-refundable. Please verify that all configurations / specifications are correct before checking out.
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: C-C-2024_p074-merged.pdf
