Product Description
The ECCLQ is designed to provide strong column-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection.The ECCLQ uses Strong-Drive SDS Heavy-Duty Connector screws (included) to provide faster installation and a lower profile than standard through bolts.
- Model No. ECCLLQ666SDSHDG

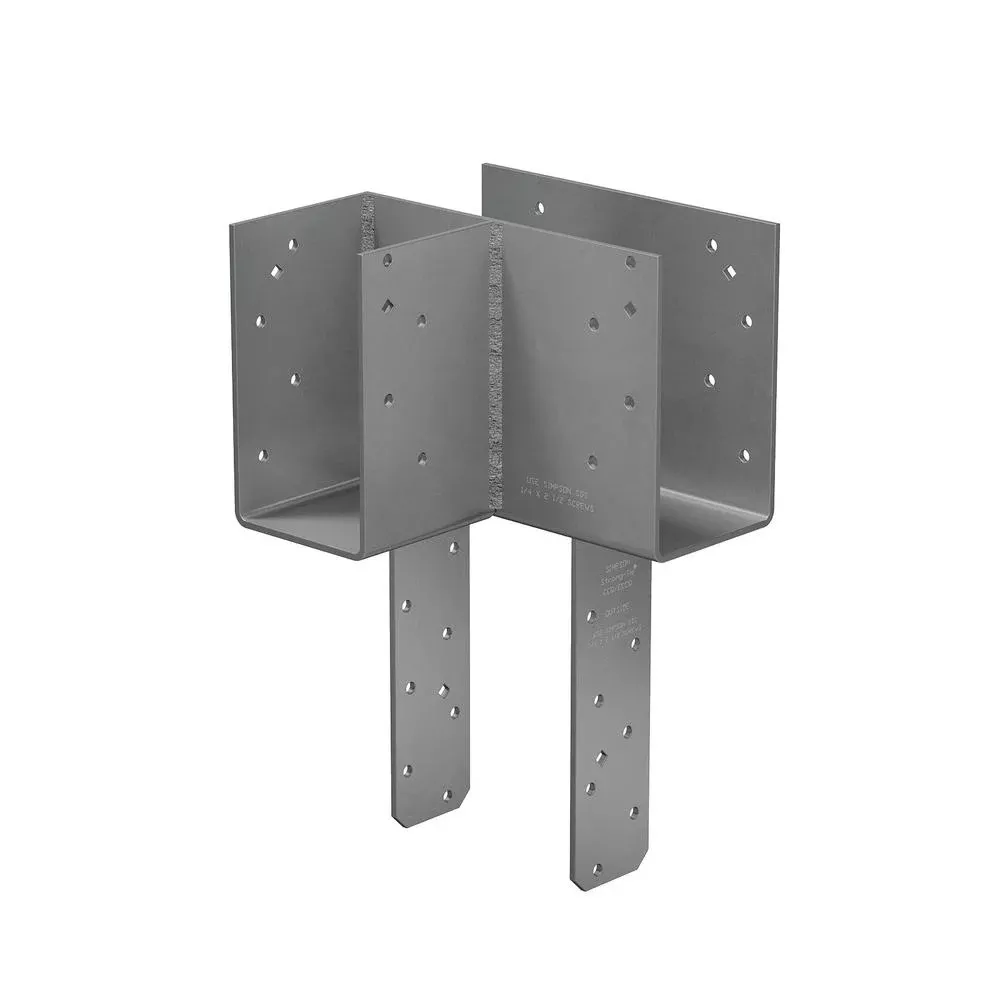

- L-Shape End Column Cap for 6x Beam, 6x Post w/ SDS Screws
- Direction. Skewed Left
- Fasteners included. 1/4″ x 2-1/2″ Strong-Drive SDS Heavy-Duty Connector screws
- Material. Steel
- Finish. Hot Dip Galvanized
- Product Guide & SPECS : View Specifications
Key Features
- Screws are configured to provide high uplift design values
- Certified welds for confidence in strength and loading
- Diamond holes to provide temporary fastening
Installation
- Install 1/4″ x 2 1/2″ Strong-Drive SDS Heavy-Duty Connector screws, which are provided, in all round holes. (Lag screws will not achieve the same load.)
- No additional welding is allowed.
Options
- Contact us for Configurable Options and Special orders
- Many combinations of beam and post sizes can be manufactured (refer to worksheet Options for Multiple-Beam Column Caps).
- Available in widths up to 8″ wide.
- ECCLQ is available in left or right side beam orientations. Specify ECCLLQ or ECCLRQ.
- Straps may be rotated.
- Column caps may be ordered without the column straps for field welding to a steel column, full loads apply for the beam and the post cap. Specify “No Straps” when ordering. Weld by designer. These models have no coating.
This is a Special Order item, or Made to Order by Simpson Strong-Tie, it is non-refundable. Please verify that all configurations / specifications are correct before checking out.
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: ECCLQ-CCCQ-CCTQ_Column_Caps.pdf
