Mail itPrint itTechnical Specifications
Product Description

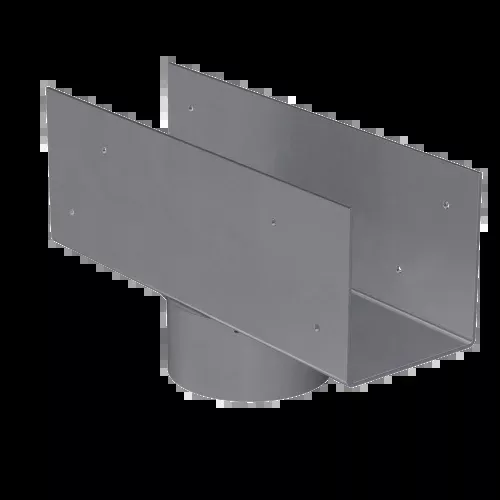

- Model No. LCC6-4
- Gauge. 12
- Width (in.) 6-1/8
- Lally Column Outside Diameter (in.) 4
- Girder. Quad 2×10/12
- Coating/Material. Simpson Strong-Tie Gray Paint
The LCC is designed specifically to be welded to the lally column and attach to the girder. The column cap provides a higher-capacity column-to-beam connection for new or replacement applications. Side plates capture the beam enabling a safer installation process than standard cap plates.
Key Features
- Provides adequate bearing length for larger girder reactions
- Cap fits over column for precise positioning and welding
- Designed specifically to work with 3 1/2″ and 4″ diameter lally columns
Installation
- Installs with 0.162 in. x 3-1/2 in. nails (See Specifications)
- Fit the lally column cap over the lally column and attach to the girder
This is a Special Order item,it is non-refundable. Please verify that all configurations / specifications are correct before checking out.
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: LCC_Lally-Column_Cap.pdf
