- Model No. HL57
- Description. Angle
- Gauge. 7
- Width-1 (in.) 5-3/4
- Width-2 (in.) 5-3/4
- Length-(in.) 7-1/2
- Coating/Material. Zinc Galvanized, G90
- Product Guide & SPECS : View Specifications

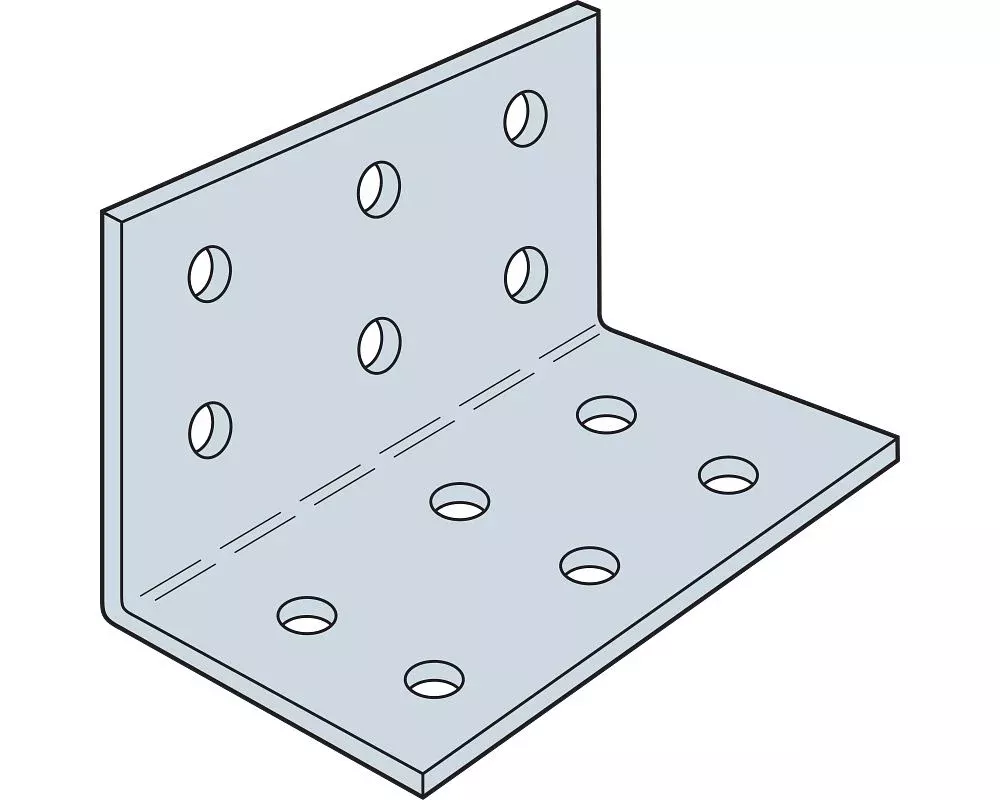

The HL is a versatile angle designed to improve corner stability. This multipurpose connector helps promote standardization and construction economy. The L-shaped design of this heavy utility strap makes it ideal for a variety of applications where two members meet at a 90° angle.
Key Features
- Helps reinforce wood members in right-angle connections
- Resists uplift and lateral forces
- Achieves lateral loads in both directions when installed in pairs
Installation
- Install with (12) 1/2 in. diameter bolts
- Lag screws of equal diameter (minimum 5″ long) may be substituted for bolts in the beam with no reduction in load.
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: HL_Heavy_Angle_and_Gusset.pdf
