- Model No. THJM2-5-SDS3
- Member Size. (5) single 2x jack trusses or joistsGauge. 12
- Coating/Material. Zinc Galvanized, G90
- Strong-Drive SDS Heavy-Duty Connector screws included

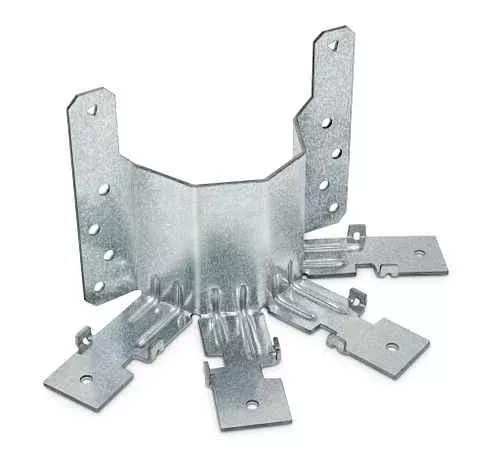

The THJM is a non-welded hanger designed to carry radial-end jack framing and provide optimal efficiency for those multi-plane, angled bay roofs over breakfast, study and library alcoves. The unique patented design of the THJM accommodates 2×4 girder bottom chords and uses our Strong-Drive SDS Heavy-Duty Connector screws for easy installation with minimal fasteners.
Key Features
- The THJM hangers are designed for installation with 1/4″ x 3″ Strong-Drive SDS Heavy-Duty Connector screws that are included with the parts.
- The THJM2-5-SDS3 is designed for five jacks coming into the hanger at 30° from the girder and each other.
- Tabs on the seats of the THJM assist in the placement of the jacks and also include obround holes for optional slant nails (0.148″ x 1 1/2″) when increased uplift is required.
Download Specs Sheet: THJM.pdf
