Product Description

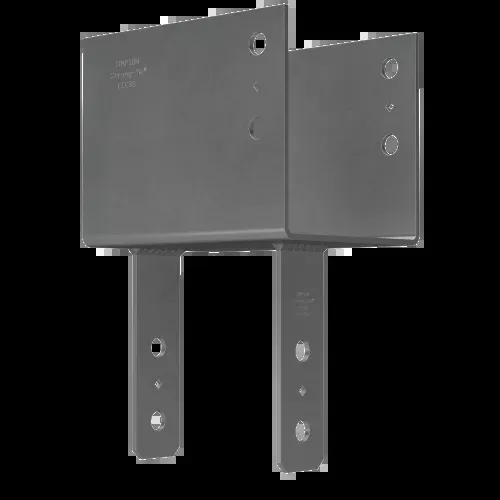

The ECC is designed to provide strong column-beam connections in end-of-beam applications in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond the one side of the column. The ECC helps to distribute the load from the beam and provide support for the connection.
- Model No. ECC5 1/4-6ROT
- Description. 5-1/8″ Beam, 6X Post Rotated Straps End Column Cap
- Material. 3 gauge
- Finish. Simpson Strong-Tie gray paint
- Fasteners required: 3/4″ Machine Bolts, Beam (2), Post (2)
- Product Guide & SPECS : View Specifications
Key Features
- Certified welds for confidence in strength and loading
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
Options
- Contact us for Configurable Options and Special orders
- Straps may be rotated 90° (see SPECS)
- For special, custom or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90° is limited by the W1 dimension.)
This item is Made to Order by Simpson Strong-Tie. Made to Order products are made for each order, with varied lead times and are non-refundable. Please verify that all configurations / specifications are correct before checking out.
Note: Productdimensions may differ from picture. Please see above item description for specifications.
Download Specs Sheet: CC-ECC-ECCU_Column-Caps.pdf
