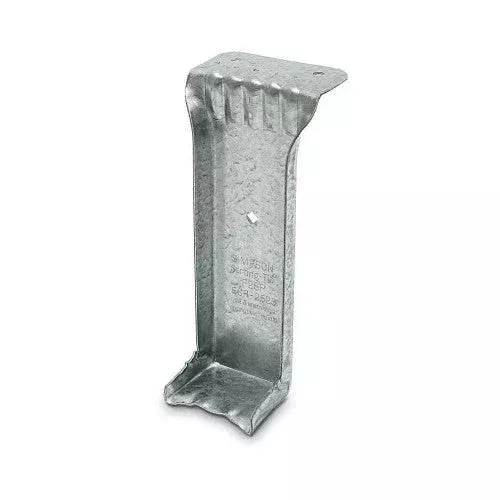

Simpson 4×6 Panelized Construction Hanger, Zmax Finish F46Z

• Model No. F46Z
• Joist Size. 4×6
• Ga. 18
• W (in.) 3 9/16
• H (in.) 5 3/8
• TF (in.) 1 7/16
• Coating/Material. ZMAX
• Install with. (2) 0.148″ x 2-1/8″ OR 0.148″ x 3″ Nails
• Product Guide & SPECS : View Specifications

As the first hanger type created by Simpson Strong-Tie, the F hanger has proven its dependability over the decades. The F is designed specifically for the panelized roof industry that uses jigs or similar devices for precision fabrication. This hanger accommodates double 2×6, 4×4 and 4×6 joist sizes. Because of its expedited installation, the F is a cost-effective top-flange hanger.

Key Features

• Compression dimples, instead of joist nails, lock the joist in place, making installation faster
• Designed to allow panels to drop easily into place
• For panelized roof construction only

Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.

Download Specs Sheet: HFNF-F_Panelized_Construction_Hangers.pdf
