Product Description

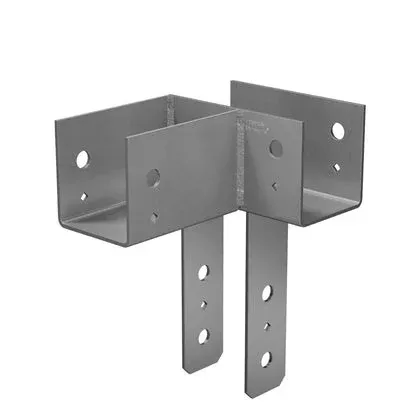

The ECCL is designed to provide strong column-to-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. End column caps are special-ordered per specific details from the designer to accommodate the many combinations of beam and post sizes.
- Model No. ECCLL444HDG
- Description. 4X Beam, 4X Post, 4X Beam End Column Cap
- Direction. Skewed Left
- Material. Steel
- Finish. Hot Dip Galvanized
- See SPECS : Specifications
Key Features
- Certified welds for confidence in strength and loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
Options
- Many combinations of beam and post sizes can be manufactured. Refer to worksheet Options for Multiple-Beam, Bolted Column Caps.
- Contact us for Configurable Options and Special orders
- The download shall be determined from the allowable loads for the unmodified product (see ECC column caps). The side beam can take a maximum of 40% of the download and shall not exceed 10,665 lb. The sum of the loads for the side beam(s) and main beam cannot exceed the table load.
- Uplift loads do not apply for ECCL caps.
- The column width in the direction of the main beam width must be the same as the main beam width (W1).
- Specify the stirrup height from the top of the cap. The minimum side stirrup heights (H2 or H3) is 6 1/2″ (3 1/2″ for models ending in “44”).
- The L dimension may vary depending on the width of the side stirrup (W3 or W4).
- Column caps may be ordered without the column straps for field welding to a steel column. Specify “No Straps” when ordering. Weld by designer. Full loads apply for the beam and the post cap.
This item is Made to Order by Simpson Strong-Tie. Made to Order products are made for each order, with varied lead times and are non-refundable. Please verify that all configurations / specifications are correct before checking out.
Note: Product dimensions may differ from picture. Please see above item description for specifications.
Download Specs Sheet: ECCL-CCC-CCT_COLUMN_CAPS-SPECIAL_ORDER_WORKSHEET.pdf
