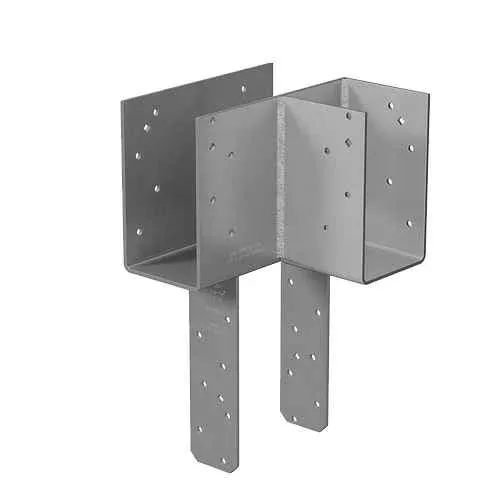

Simpson 4x Beam, 4x Post L-Shape End Column Cap (Right) w/Screws ECCLRQ444SDS

Original price was: $55.48.Current price is: $34.73.

Sale!
SKU: ECCLRQ444SDS Category:
Share

The ECCLQ is designed to provide strong column-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection.The ECCLQ uses Strong-Drive SDS Heavy-Duty Connector screws (included) to provide faster installation and a lower profile than standard through bolts.

  • Model No. ECCLRQ444SDS
  • L-Shape End Column Cap for 4x Beam, 4x Post w/ SDS Screws
  • Direction. Skewed Right
  • Fasteners included. 1/4″ x 2-1/2″ Strong-Drive SDS Heavy-Duty Connector screws
  • Material. Steel
  • Finish. Simpson Strong-Tie Gray paint
  • Product Guide & SPECS : View Specifications

Key Features

  • Screws are configured to provide high uplift design values
  • Certified welds for confidence in strength and loading
  • Diamond holes to provide temporary fastening

Installation

  • Install 1/4″ x 2 1/2″ Strong-Drive SDS Heavy-Duty Connector screws, which are provided, in all round holes. (Lag screws will not achieve the same load.)
  • No additional welding is allowed.

Options

  • Contact us for Configurable Options and Special orders
  • Many combinations of beam and post sizes can be manufactured (refer to worksheet Options for Multiple-Beam Column Caps).
  • Available in widths up to 8″ wide.
  • ECCLQ is available in left or right side beam orientations. Specify ECCLLQ or ECCLRQ.
  • Straps may be rotated.
  • Column caps may be ordered without the column straps for field welding to a steel column, full loads apply for the beam and the post cap. Specify “No Straps” when ordering. Weld by designer. These models have no coating.

This is a Special Order item, or Made to Order by Simpson Strong-Tie, it is non-refundable. Please verify that all configurations / specifications are correct before checking out.

Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.

Download Specs Sheet: ECCLQ-CCCQ-CCTQ_Column_Caps.pdf
