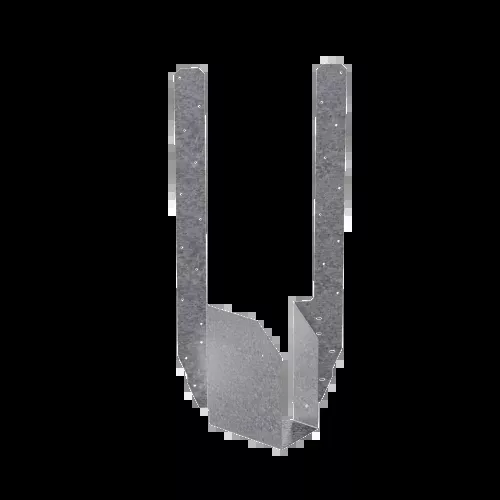

The THAR/THAL is designed to support 4×2 trusses and 4x beams. This versatile U-shaped truss hanger features positive-angle nailing (PAN) to help eliminate splitting of truss bottom chords. The field-adjustable THAR has a 45° skew to the right, while the THAL has a 45° skew to the left.
Key Features
- Eliminates the need for special orders
- Can be used for top-flange or face-mount installation
- Extra-long straps for height adjustability and top-flange installation convenience
Installation
- Install with 0.148 x 1-1/2 in. nails and 0.148 in. x 3 in. nails
- Straps must be field-formed over the header a minimum of 2 1/2″
- Minimum and maximum nailing configurations available – see load table for nailing requirements
Download Specs Sheet: THAR-L_Adjustable_Skewed_Truss_Hanger.pdf
