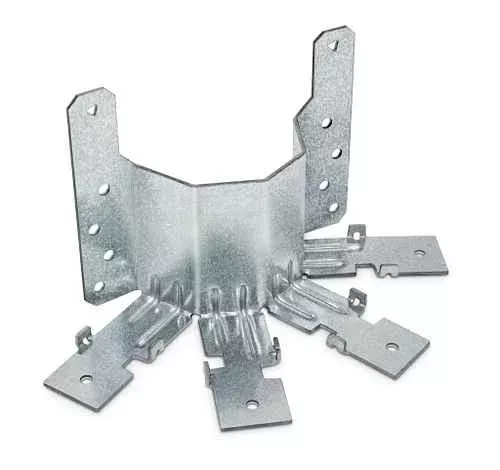

Simpson 4-Way Truss Hip/Jack Hanger w/Screws THJM2-4-SDS3

• Model No. THJM2-4-SDS3
• Member Size. (4) single 2x jack trusses or joistsGauge. 12
• Coating/Material. Zinc Galvanized, G90
• Strong-Drive SDS Heavy-Duty Connector screws included

The THJM is a non-welded hanger designed to carry radial-end jack framing and provide optimal efficiency for those multi-plane, angled bay roofs over breakfast, study and library alcoves. The unique patented design of the THJM accommodates 2×4 girder bottom chords and uses our Strong-Drive SDS Heavy-Duty Connector screws for easy installation with minimal fasteners.

Key Features

• The THJM hangers are designed for installation with 1/4″ x 3″ Strong-Drive SDS Heavy-Duty Connector screws that are included with the parts.
• The THJM2-4-SDS3 is designed for four incoming jack trusses with the outer jacks being 22 1/2° from the face of the girder and the inner jacks being 45° from each other and the outer jacks.
• Tabs on the seats of the THJM assist in the placement of the jacks and also include obround holes for optional slant nails (0.148″ x 1 1/2″) when increased uplift is required.

Download Specs Sheet: THJM.pdf
