- Model No. HPA28
- Ga. 10
- W (in.) 2 1/16
- L (in.) 32 1/2
- Coating/Material. Zinc Galvanized, G90

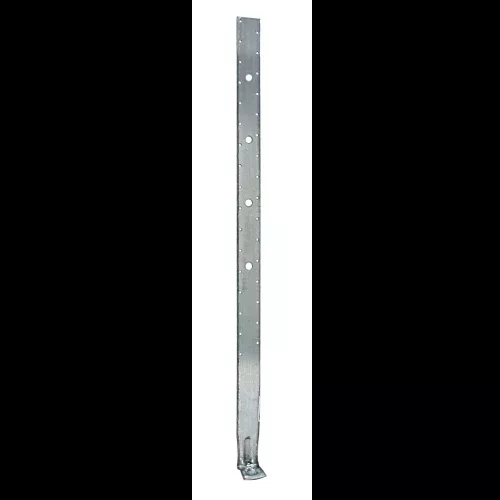

The HPA is a solution for wood-to-concrete connections which satisfies code requirements. This heavy purlin anchor is designed to connect roof purlins to a concrete wall. The HPA offers the highest capacity in concrete.
Key Features
- Embedment line stamped on strap to aid installation
- Nailing pattern optimized for narrow face of nominal 3x or double 2x wood member
- Low design profile minimizes visibility
Installation
- Use all specified fasteners; some models have extra fastener holes. See Specifications
- Purlin anchor must hook around rebar.
- Allowable loads are for a horizontal installation into the side of a concrete or masonry wall.
- Strap may be bent one full cycle (bent vertical 90°, then bent horizontal).
- Edge Distance – minimum concrete edge distance is 5″. Minimum concrete- block left-to-right edge distance is 20″.
Download Specs Sheet: PA-HPA-PAI-MPAI_Purlin_Anchors.pdf
