- Model No. HTTH6.5
- Gauge. 10
- Length: 20-1/4″
- Width: 3″
- Coating/Material. Zinc Galvanized, G90

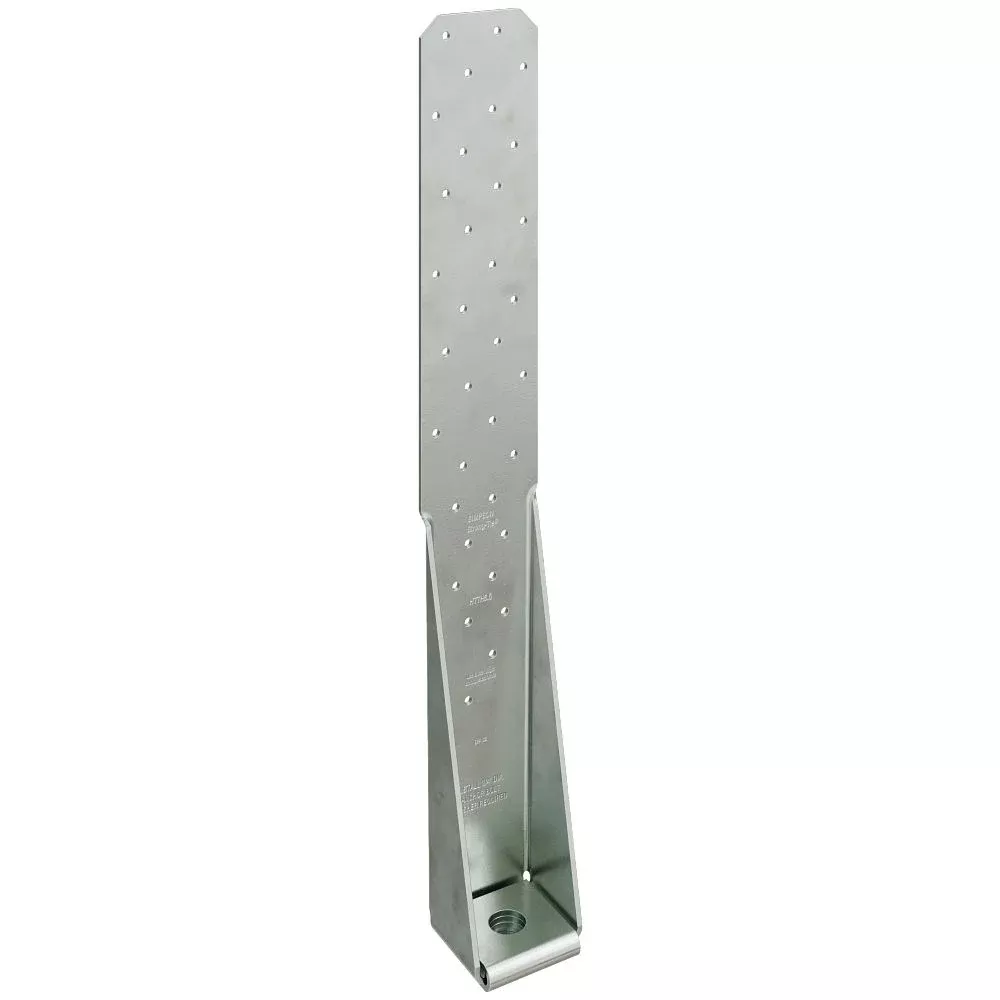

The HTTH6.5 heavy tension tie is an ideal solution for residential construction as well as light-framed wood commercial buildings. Tested per AC 155, the HTTH6.5 is the first nailed-on holdown to achieve up to 7,650 lb. allowable load, making it an economical solution when heavier loads are required.
The HTT is a high-strength solution for resisting tension loads in post-pour, wood-to-concrete connections. This heavy, single-piece formed tension tie is fastened with nails or Strong-Drive SD Connector screws. The HTT has a four-ply formed seat and a design without rivets that does not require washers.
Key Features
- Optimized nailing pattern for better performance and less deflection
- Ideal for retrofit or new construction projects
- Four-fold seat to reduce deflection
- Fasteners required. View Specifications
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: HTTH6.5_Heavy_Tension_Tie_Designed_for_Higher_Loads.pdf
