Mail itPrint itTechnical Specifications
Product Description
- Model No. LB216
- Joist Size. 2×16
- Gauge. 14
- Width (in.) 1 9/16
- Height (in.) 15 1/8
- B (in.) 2
- Coating/Material. Zinc Galvanized, G90

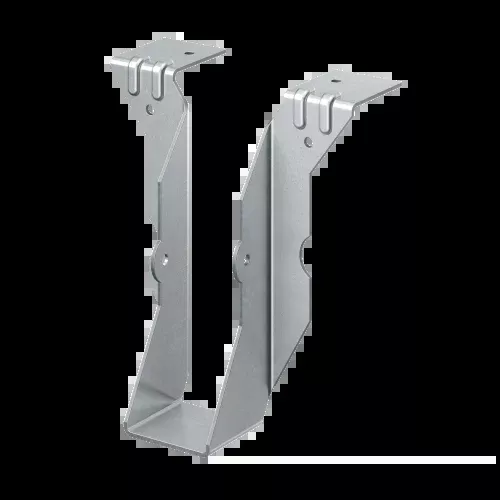

The LB is a top-flange hanger for solid sawn lumber applications. This cost-effective hanger is designed for light-to-medium loads while providing uplift. The LB has been load rated for use with a 2x nailer if required.
This is a Special Order item, or Made to Order by Simpson Strong-Tie, it is non-refundable. Please verify that all configurations / specifications are correct before checking out.
Key Features
- Embossment at the top flange provides increased stiffness
- Available in 2×6, 2×8 and 2×16 solid sawn joist sizes
- Engineered with increased uplift loads for earthquake or high-wind loading
Installation
- Use specified fasteners; see Specifications and nailer table notes.
- May be welded to steel headers with weld size to match material thickness. The minimum required weld to the top flanges is a 2″ fillet weld to each side of each top-flange tab. Distribute the weld equally on both top flanges. Welding cancels the top and face nailing requirements. Consult the code for special considerations when welding galvanized steel. The area should be well-ventilated (see General Instructions for the Installer, note k, for welding information). Weld-on applications produce the maximum allowable download listed. For uplift loads, refer to technical bulletin Top-Flange Hangers Welded to Structural Steel Members (T-C-WELDUPLFT).
- Ledgers must be evaluated for each application separately. Check TF dimension, nail length and nail location on ledger.
Load Tables / Values
- Face-Mount Hangers – Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers – Solid Sawn Lumber (SPF / HF) Tables
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
Download Specs Sheet: JB-JBA-LB-LBAZ-BA-HB_Joist_Beam_and_Purlin_Top-Flange_Hangers.pdf
