- Model No. JB212A
- Joist Size. 2×12
- Gauge. 18
- Width (in.) 1 9/16
- Height (in.) 11 1/8
- Coating/Material. Zinc Galvanized, G90

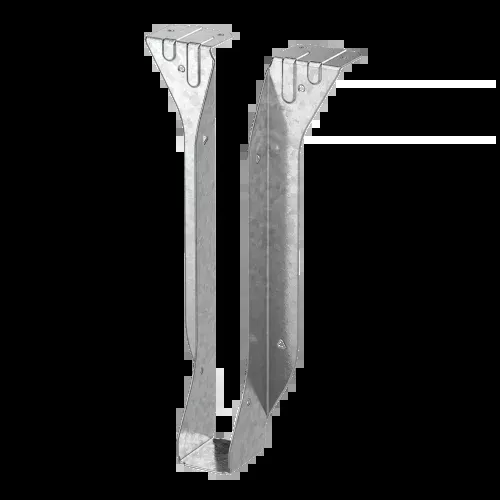

The JBA is a top-flange hanger for solid sawn lumber applications. This cost-effective hanger is designed to support light-to-medium loads while providing uplift. The JBA also features optional triangular nail holes for maximum nailing to increase allowable loads.
Key Features
- Unique two-level embossment provides added stiffness to the top flange
- Nail locations that enable effective use with nailers
- Additional load rating for a 2x or 3x nailer
- Engineered with increased uplift loads for earthquake or high-wind loadin
Installation
- Install with (6) 0.162 in. x 3-1/2 in. nails in the header and (2) 0.148 in. x 1-1/2 in. nails in the joist
- Ledgers must be evaluated for each application separately. Check top-flange dimension, nail length and nail location on ledger.
Load Tables / Values
- Face-Mount Hangers – Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers – Solid Sawn Lumber (SPF / HF) Tables
Download Specs Sheet: JB-JBA-LB-LBAZ-BA-HB_Joist_Beam_and_Purlin_Top-Flange_Hangers.pdf
