Product Description

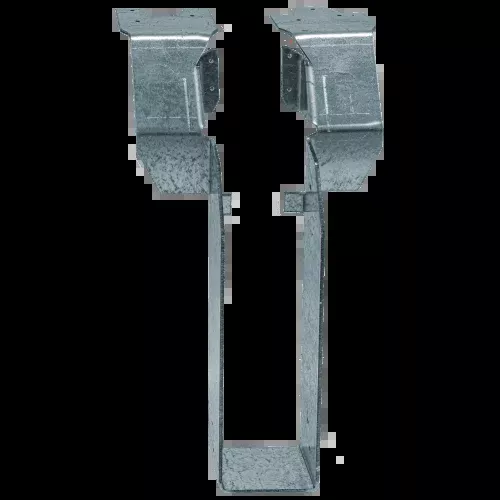

Ideal for multifamily, multilevel Type III residential construction, the patent-pending DGT is a load-tested fire wall hanger with a two-hour fire rating. It’s the first fire wall hanger designed to install with a power nailer, saving time before hanging drywall, which helps keep construction projects on schedule. This top-flange hanger provides space for two layers of 5/8″ gypsum board (drywall) to be slipped into place after the framing is complete.
The DGT has been tested according to ASTM E814 and is fire rated for use on both sides of the wall.
- Model No. DGT212
- Joist Size (in.) 2×12
- Gauge. 12
- W (in.) 1-9/16
- H (in.) 11-1/8
- Coating/Material. Zinc Galvanized, G90
- See Load Tables / SPECS : Specifications
Key Features
- Loads tested and code listed for 1 1/2″ and 2 1/2″ power-driven or hand-installed nails
- Two-hour fire rating applies to 2×4 or thicker walls
- Innovative top-flange design for back-to-back installation on 2×6 (min.) walls
- Space for two layers of 5/8″ drywall after framing
- Two-hour Fire-Resistant rating Intertek Design No. SST/WPCF 120-01
This item is Made to Order by Simpson Strong-Tie. Made to Order products are made for each order, with varied lead times and are non-refundable. Please verify that all configurations / specifications are correct before checking out.
Note: Product dimensions may differ from picture. Please see above item description for specifications.
Contact us for Configurable Options and Special orders
Download Specs Sheet: DGT-DGHT_Fire_Wall_Hangers.pdf
