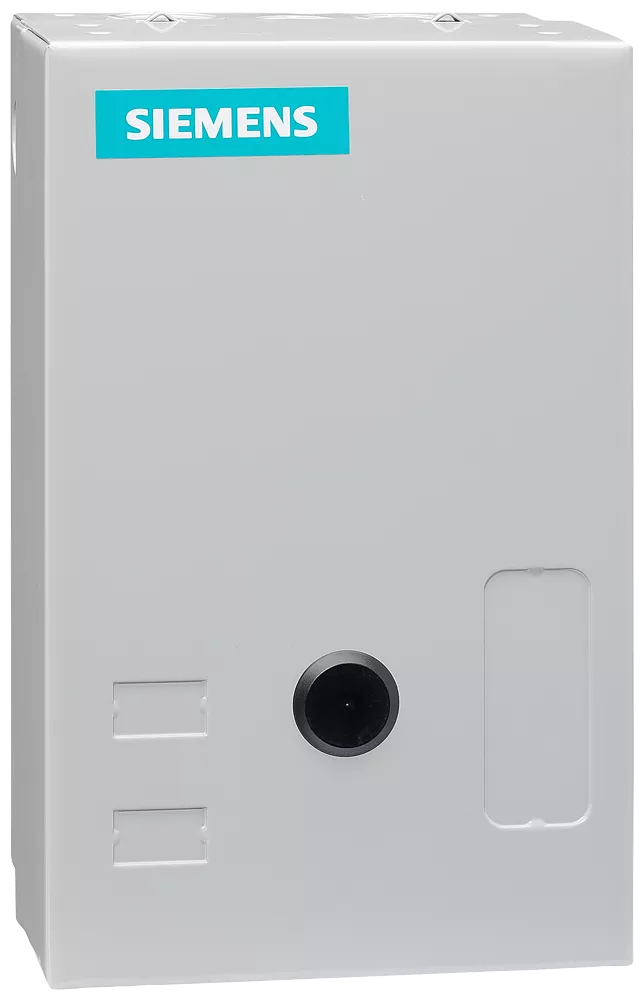

Electrically held lighting contactor, Contactor amp rating 20A, 0 N.C. / 3 N.O. Poles, 110VAC 50HZ/120VAC 60HZ coil, Non-combination type, (no disconnect device), Enclosure NEMA type 1, Indoor general purpose use
Specifications
| Brand Name | Siemens | Sub Brand | Class LEN |
| Item Name | Lighting Contactor | Type | Electrically Held, Mechanical |
| Coil Voltage | 110 V at 50 Hz, 120 V at 60 Hz | Power Rating | 4.8 W, 12000 W |
| Phase | 1/3 | Contact Configuration | 3 NO – 0 NC |
| Contact Rating | 20 A at 600 VAC | Terminal Connection | Screw |
| Dimensions | 11 x 7 x 5 in | Mounting Type | Surface |
| Voltage Rating | 120 V | Amperage Rating | 20 A |
| Standards | cULus Listed | Application | Motor Controls |
| UPC | 040892859720 |
