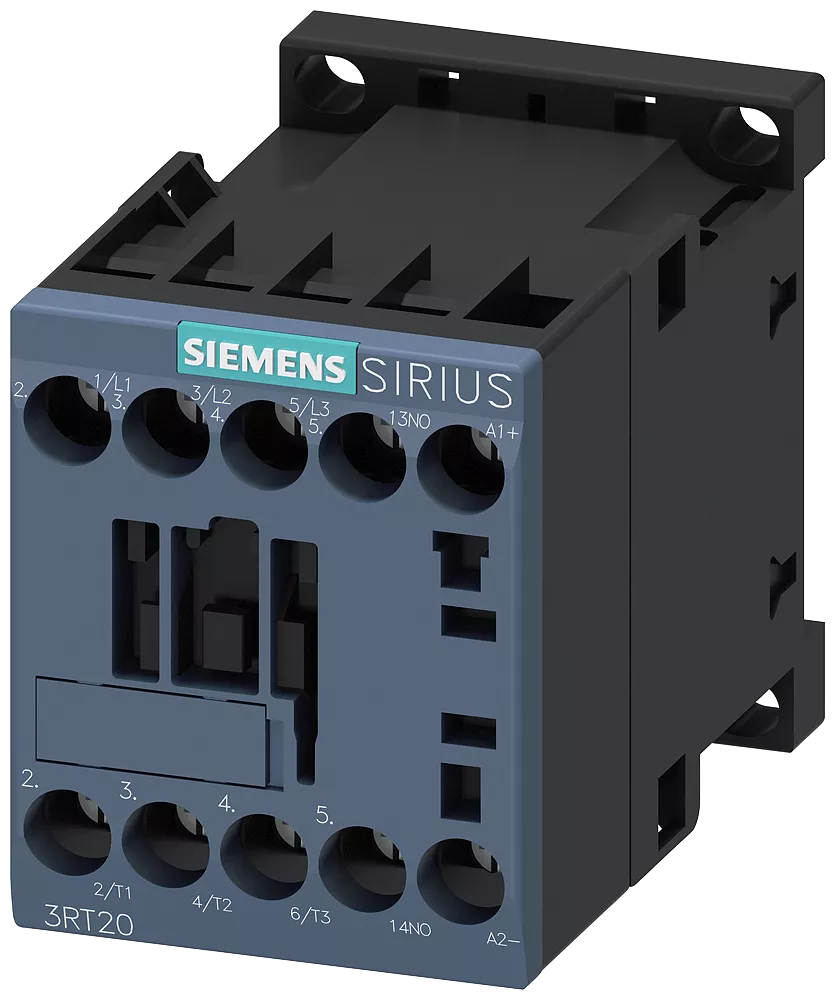

Power contactor, AC-3 12 A, 5.5 kW / 400 V 1 NO, 24 V DC 3-pole, Size S00 screw terminal.
Specifications
| Brand Name | Siemens | Sub Brand | Sirius |
| Item Name | Power Contactor | Coil Voltage | 24 VDC |
| Power Rating | 5.5 kW at 400 VAC-3, 2 kW at 400 VAC-4 | Phase | 3 |
| Contact Configuration | 1 NO Auxiliary | Contact Rating | 12 A at 400 V |
| Number of Poles | 3 | Terminal Connection | Screw |
| Dimensions | 45 mm W x 73 mm D x 57.5 mm H | Voltage Rating | 0 – 24 VDC |
| Amperage Rating | 22 A at 400 VAC-1, 12 A at 400 VAC-3, 4.1 A at 400 VAC-4 | Frame Size | S00 |
| Temperature Rating | -25 to 60 °C | Standards | UL Listed, CCC, CSA, GOST Certified |
| UPC | 662643911114 |
