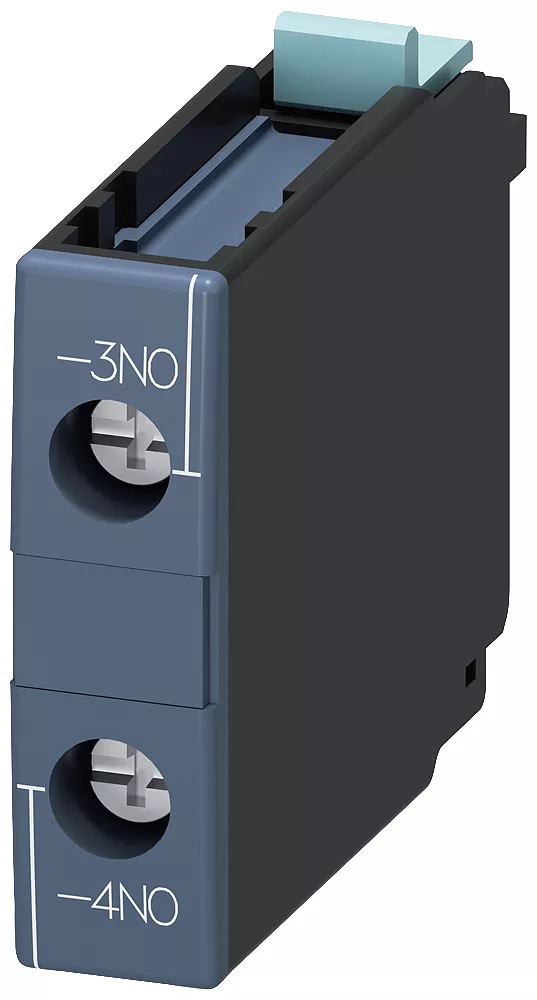

SIEP 3RH1921-1CA10 1NO TOP AUX CONT
Specifications
| Brand Name | Siemens | Sub Brand | Sirius |
| Item Name | Auxiliary Switch Block | Voltage Rating | 690 V Insulation, 6 kV Surge |
| Contact Configuration | 1 NO | Contact Rating | 6 A at 230 VAC |
| Number of Poles | 1 | Size | S0-S12 |
| Amperage Rating | 10 A | Conductor Size | (2) 20-16 AWG, (2) 18-14 AWG Stranded |
| NEMA Rating | NEMA A600, Q600 | Enclosure Standard | IP20 |
| Terminal Type | Screw | Mounting Type | Snap-On |
| Dimensions | 10 mm W x 51 mm D x 38 mm H | For Use With | 3RT1 Contactor |
| Standards | UL Listed, CSA, EAC, CCC, CE Certified | UPC | 754554398679 |
