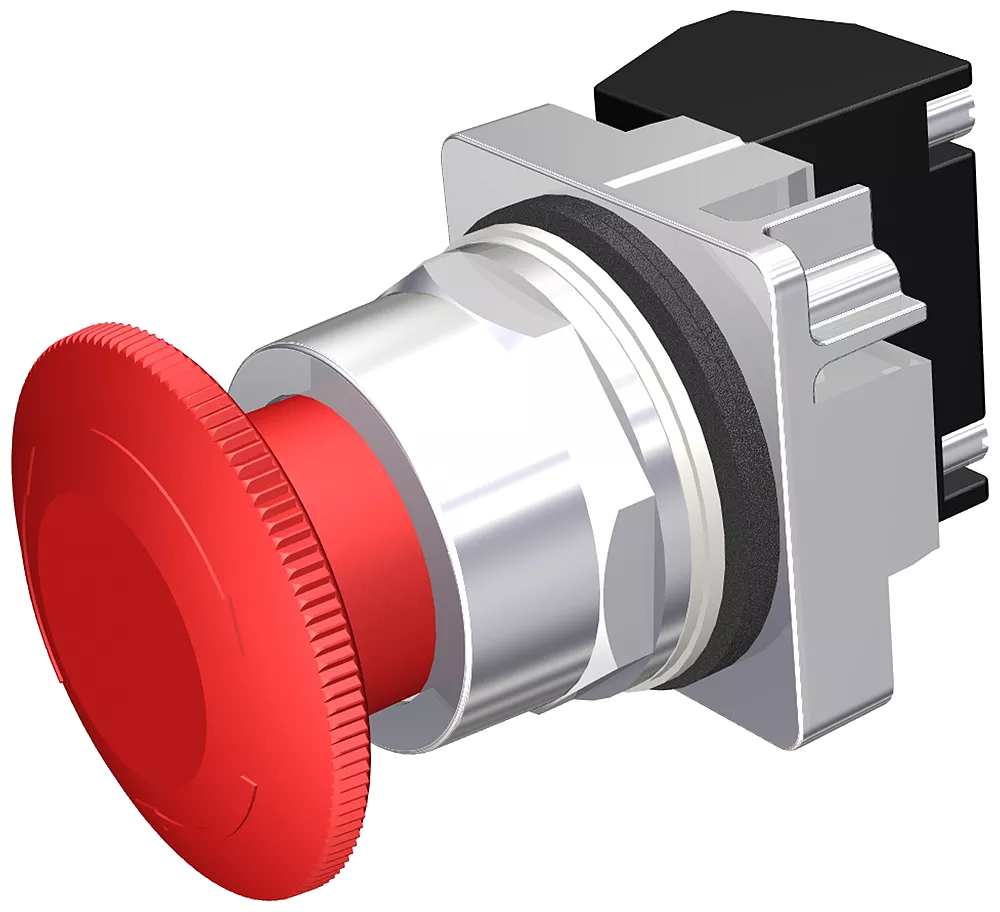

30mm Command/52, Chrome Finish Heavy Duty,Watertight/Oiltight Complete Metal Unit Twist-to-Release Operator Non-Illuminated Mushroom Head Cap Small 1.79″ (45 mm) Plastic Cap, Red 2 Position Maintained, Twist-to-Release with 1 N.O. – 1 N.C. Heavy Duty Contacts, A600/P600 UL Listed, CSA Certified NEMA 1,3,3R,4,4X,12,13 & Automotive Standards
Specifications
| Brand Name | Siemens | Sub Brand | Pilot Devices |
| Item Name | Pushbutton Switch | Type | 2-Position, Heavy-Duty, Non-Illuminated, Oiltight, Twist-to-Release |
| Nominal Diameter | 30 mm | Action | Maintained |
| Contact Configuration | 1 NO, 1 NC | Contact Rating | 10 A at 600 VAC |
| Enclosure Type | NEMA 1, 3, 3R, 4, 4X, 12, 13 | Color | Red |
| Amperage Rating | 12 – 60 A | Degree of Protection | IP20, IP66 |
| Bezel Material | Die-Cast Zinc | Temperature Rating | -35 to 70 °C |
| Standards | CSA Certified, UL Listed | UPC | 662643784725 |
