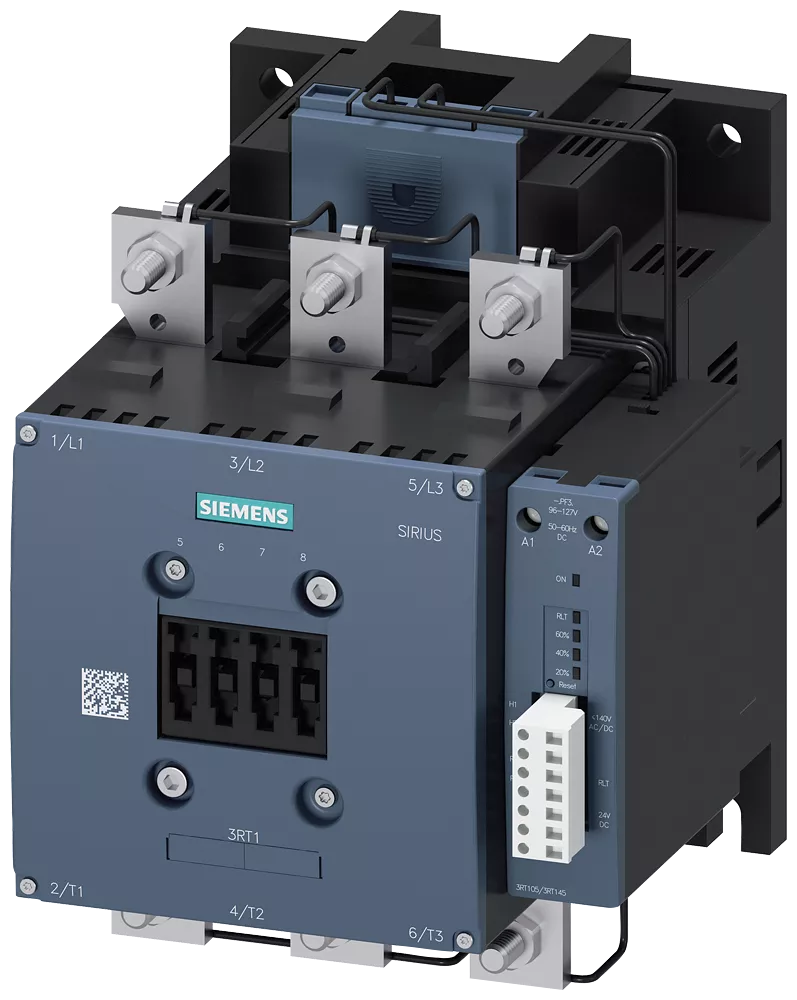

power contactor, AC-3e/AC-3 225 A, 110 kW / 400 V AC (50-60 Hz) / DC Uc: 96-127 V PLC input 24 V DC 3-pole, auxiliary contacts 1 NO + 1 NC drive: electronic main circuit: busbar control and auxiliary circuit: screw terminal with remaining lifetime indicator
Specifications
| Brand Name | Siemens | Sub Brand | Sirius |
| Item Name | IEC Contactor | Type | Non-Reversing |
| Coil Voltage | 96 – 127 VAC/VDC | Power Rating | 110 kW at 400 VAC |
| Phase | 3 | Contact Configuration | 1 NO, 1 NC |
| Number of Poles | 3 | Terminal Connection | Screw |
| Dimensions | 165 mm W x 202 mm D x 210 mm H | Mounting Type | Screw |
| Voltage Rating | 24 VDC | Amperage Rating | 225 A |
| Frequency Rating | 50/60 Hz | Conductor Size | 18-14 AWG |
| Frame Size | S10 | Degree of Protection | IP00, IP20 |
| Temperature Rating | -25 to 60 °C | Environmental Conditions | 10 – 95% Humidity |
| Standards | CSA Certified, RCM, EAC, CE Certified, ROHS Compliant, DVE, UL Listed | UPC | 754554806273 |
