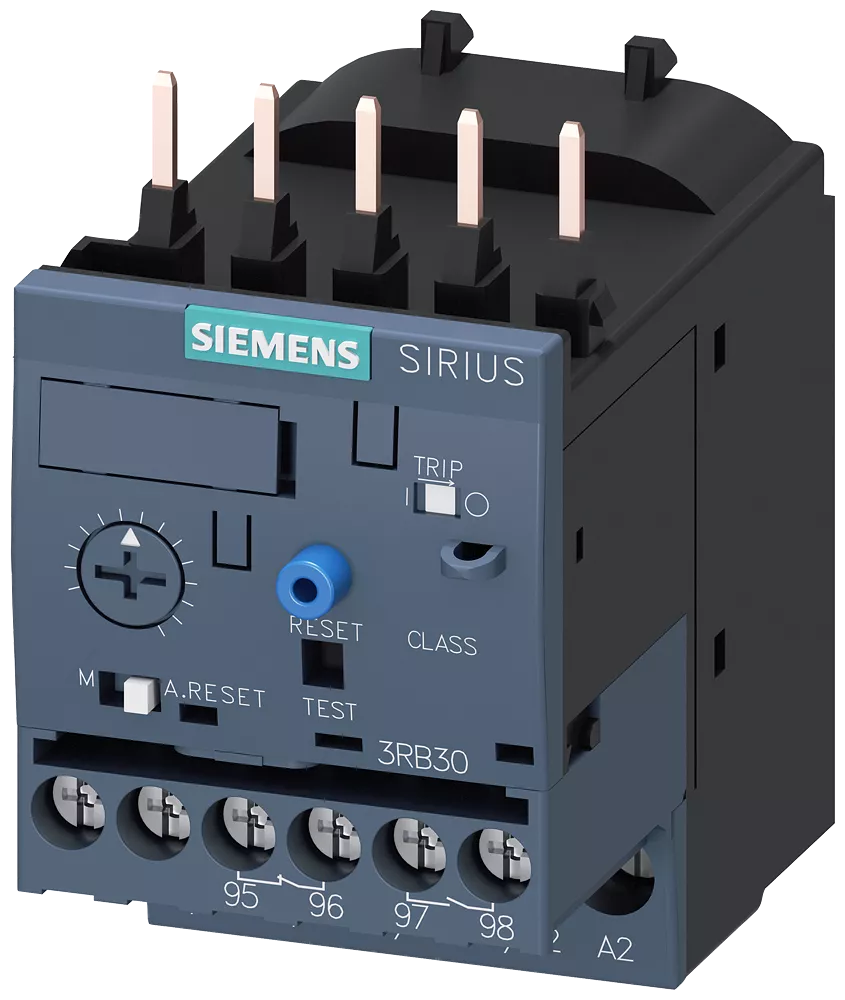

SIRIUS Solid-state overload relay. Overload, phase failure and unbalance protection. Internal power supply. Auxiliary contacts 1NO-1NC. Manual and automatic reset. Switch position indicator. Test function and self-monitoring. Screw terminal. Designed for mounting onto contactors. IP20 protection class. Operating temperature -25 to 60°C.
Specifications
| Brand Name | Siemens | Sub Brand | Overload Relays |
| Item Name | Overload Relay | Type | Solid State, Automatic Reset |
| Class | Class 10 | Voltage Rating | 0 – 690 VAC |
| Contact Configuration | 1 NO, 1 NC | Amperage Rating | 1 – 4 A |
| Frequency Rating | 50/60 Hz | Terminal Type | Screw |
| Frame Size | S00 | Mounting | Direct Attachment |
| UPC | 662643904932 |
