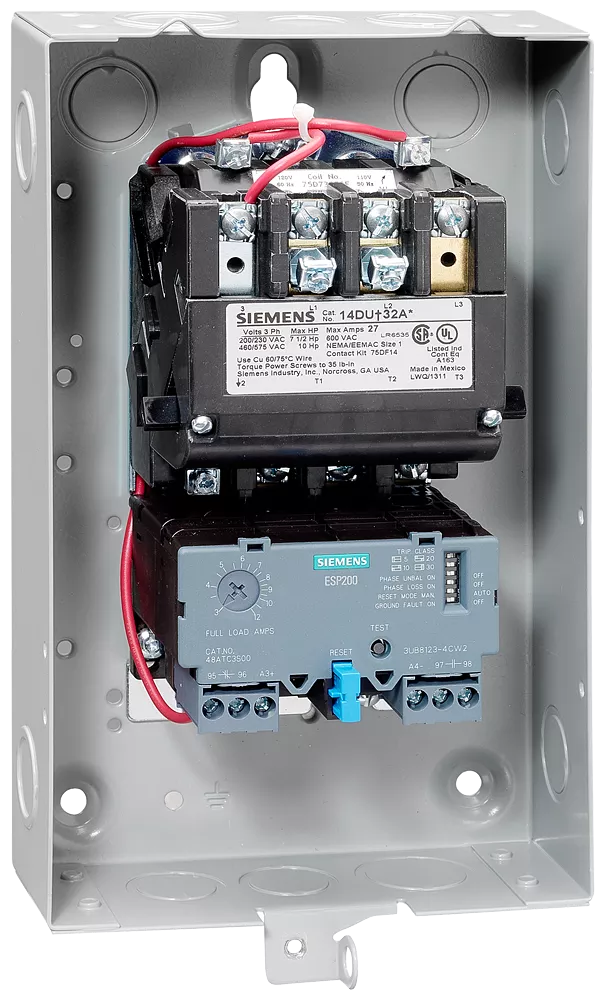

Non-reversing motor starter, size 1, Three phase full voltage. Solid-state overload relay. OLR ampere range 5.5 to 22 A, 110 VAC 50 Hz/120 VAC, 60 Hz coil combination type. No enclosure.
Specifications
| Brand Name | Siemens | Sub Brand | General Purpose Control |
| Item Name | NEMA Motor Starter | Type | Auto/Manual, Heavy-Duty, Full Voltage, Non-Reversing, Solid-State |
| Control Voltage | 110/120 VAC | Amperage Rating | 27 A |
| Phase | 3 | HP Rating | 10 hp |
| Number of Poles | 3 | Frequency Rating | 50/60 Hz |
| Overload Amperage | 5.5 – 22 A | Maximum Voltage | 600 V |
| Trip Class | 14 | NEMA Size-OLD | NEMA 1 |
| NEMA Size | NEMA 1 | Enclosure Type | Open |
| Standards | UL Listed in File Number E14900, CSA Certified in File Number LR6535 | UPC | 783087817838 |
