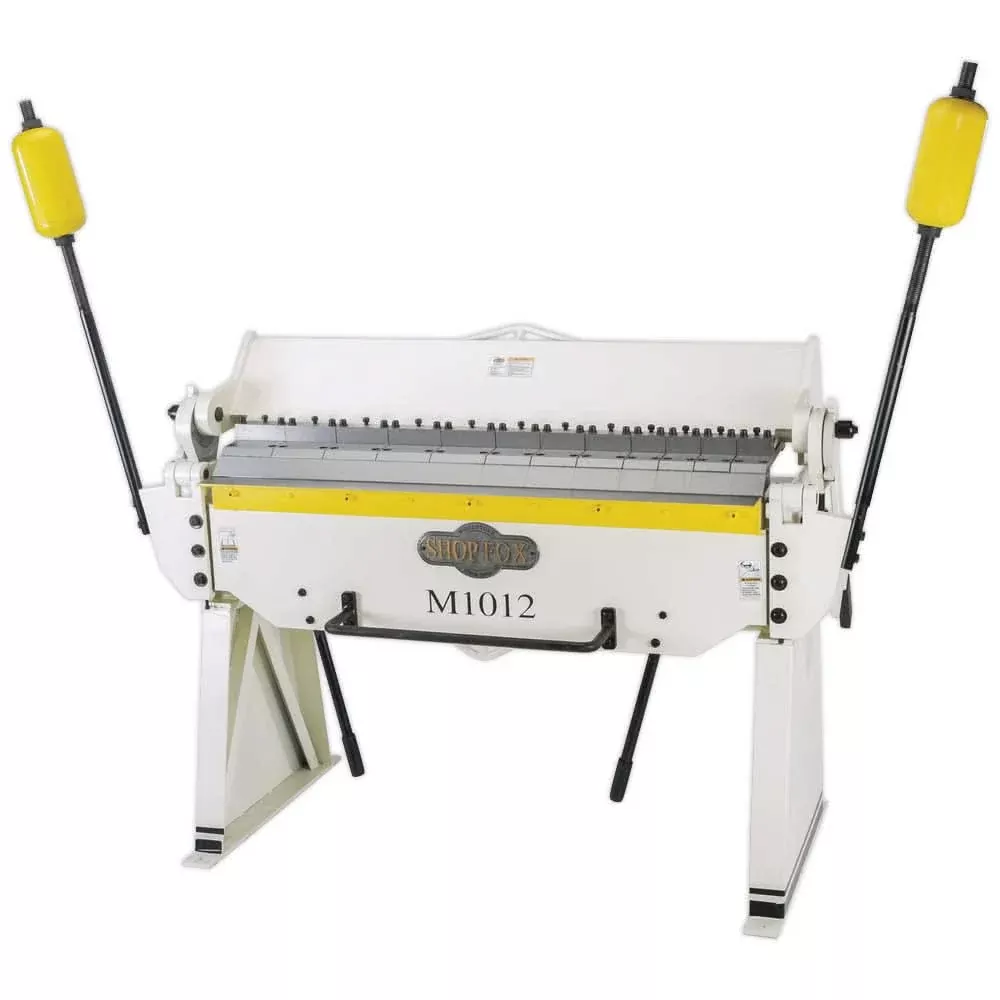

This Pan and Box Brake is great for forming extra-wide or long pieces of sheet metal. It can bend boxes or pans up to 6″ deep, materials up to 48″ wide and 12 gauge thick mild steels, from 0 to 135 degrees! Removable and adjustable 3″, 4″, and 25″ fingers can accommodate a variety of metal widths.
- Precision fingers that are evenly hardened to ensure maximum life and durability
- Max. workpiece width: 48″
- Bending capacity at full width: 14 ga. mild steel
- Bending capacity at half width: 12 ga. mild steel
- Brake angle: 0-135
- Box fingers: 25″(x1), 4″ (x2), & 3″ (x6)
- Footprint: 57″ x 29″
- Max. box depth: 6″
- Min. reverse bend: 1/2″
- Approximate shipping weight: 1287 lbs.
