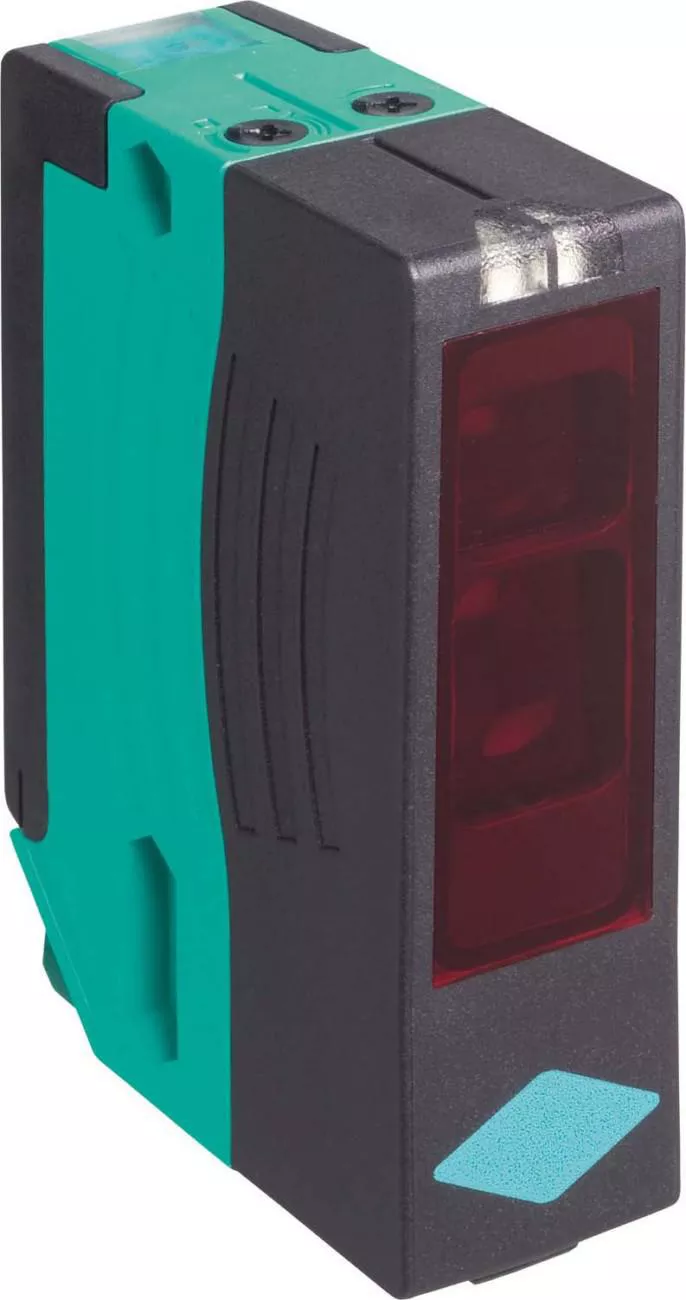

Retro reflective sensor with polarization filter, plastic ABS housing and plastic pane optical face. Universal series with highly versatile fields of use. Resistant against noise: reliable operation under all conditions. 2 LED’s yellow, light up when light beam is free, flash when falling short of the stability control, off when light beam is interrupted. Sensitivity adjustment, light-on/dark-on changeover switch control elements. Terminal compartment with 8 spring-loaded terminals for wire cross section 0.5 to 1.5 mm², insulation stripping 7.5 to 8.5 mm, M16 x 1.5 cable gland connection.
Specifications
| Brand Name | Pepperl+Fuchs | Item Name | Photoelectric Sensor |
| Voltage Rating | 12 – 240 VAC/VDC | Emitter Light Source | Light/Dark |
| Sensing Distance | 0 – 17 m | Light Source | Visible Red LED |
| Material | ABS | Sensing Mode | Reflective |
| Indicator Type | LED | Degree of Protection | IP67 |
| Temperature Rating | -40 to 140 °F | Standards | UL 60947-5-2:2014, EN 60947-5-2:2007 + A1:2012, EN 62471:2008 |
