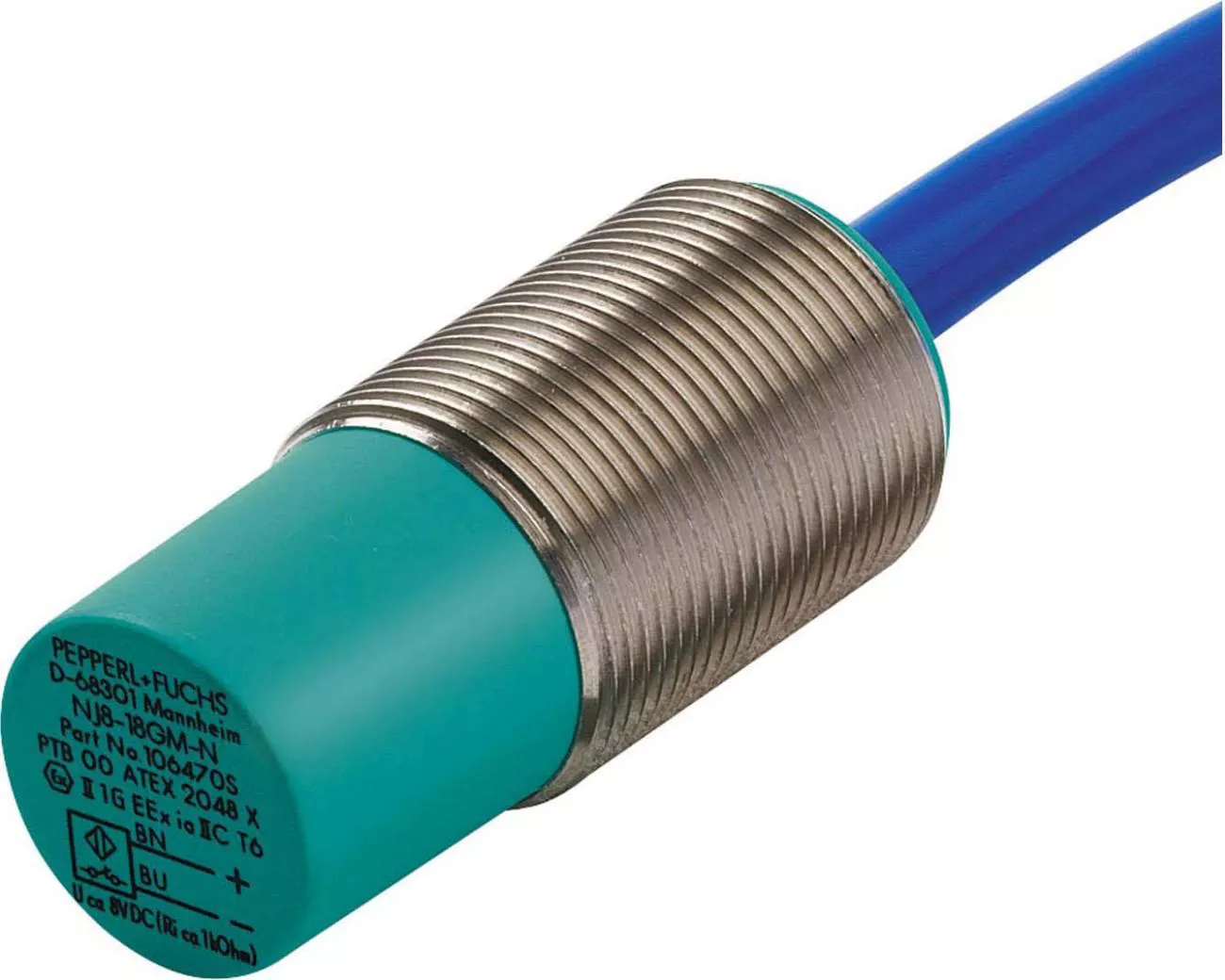

Inductive sensor with stainless steel housing and PBT sensing face. It features 8 mm non-flush.
Specifications
| Brand Name | Pepperl+Fuchs | Item Name | Inductive Proximity Sensor |
| Sensing Distance | 8 mm | Output | Normally Closed |
| Output Circuit Type | NAMUR, 2-Wire | Dimensions | 18 mm W x 40 mm H |
| Voltage Rating | 8.2 V | Operating Frequency | 0 – 200 Hz |
| Conductor Size | 0.75 mm² | Degree of Protection | IP67 |
| Connection Type | 2 m PVC Cable | Material | Stainless Steel |
| Mounting Type | Non-Flush | Temperature Rating | -25 to 100 °C |
| Standards | EN 60947-5-6:2000, IEC 60947-5-6:1999, EN 60947-5-2:2007, EN 60947-5-2/A1:2012, IEC 60947-5-2:2007, IEC 60947-5-2 AMD 1:2012, cULus Listed, CSA Certified, CCC |
