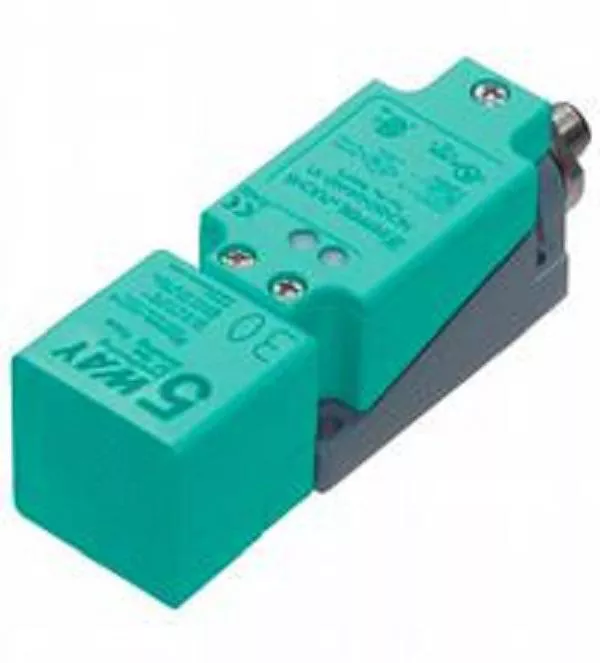

Inductive sensor with PBT or metal housing and PBT sensing face. LED, yellow switching state indicator. It features reverse polarity protected.
Specifications
| Brand Name | Pepperl+Fuchs | Item Name | Inductive Proximity Sensor |
| Sensing Distance | 30 mm | Output | NAMUR, NC |
| Output Circuit Type | 2-Wire | Voltage Rating | 8.2 V |
| Amperage Rating | 3 mA | Operating Frequency | 0 – 150 Hz |
| Conductor Size | 2.5 mm² | Degree of Protection | IP68 |
| Indicator Type | LED | Connection Type | Screw Terminal |
| Material | Metal/PBT | Temperature Rating | -25 to 100 °C |
| Standards | EN 60947-5-6:2000, IEC 60947-5-6:1999, cULus Listed, cCSAus Certified, CCC Approved |
