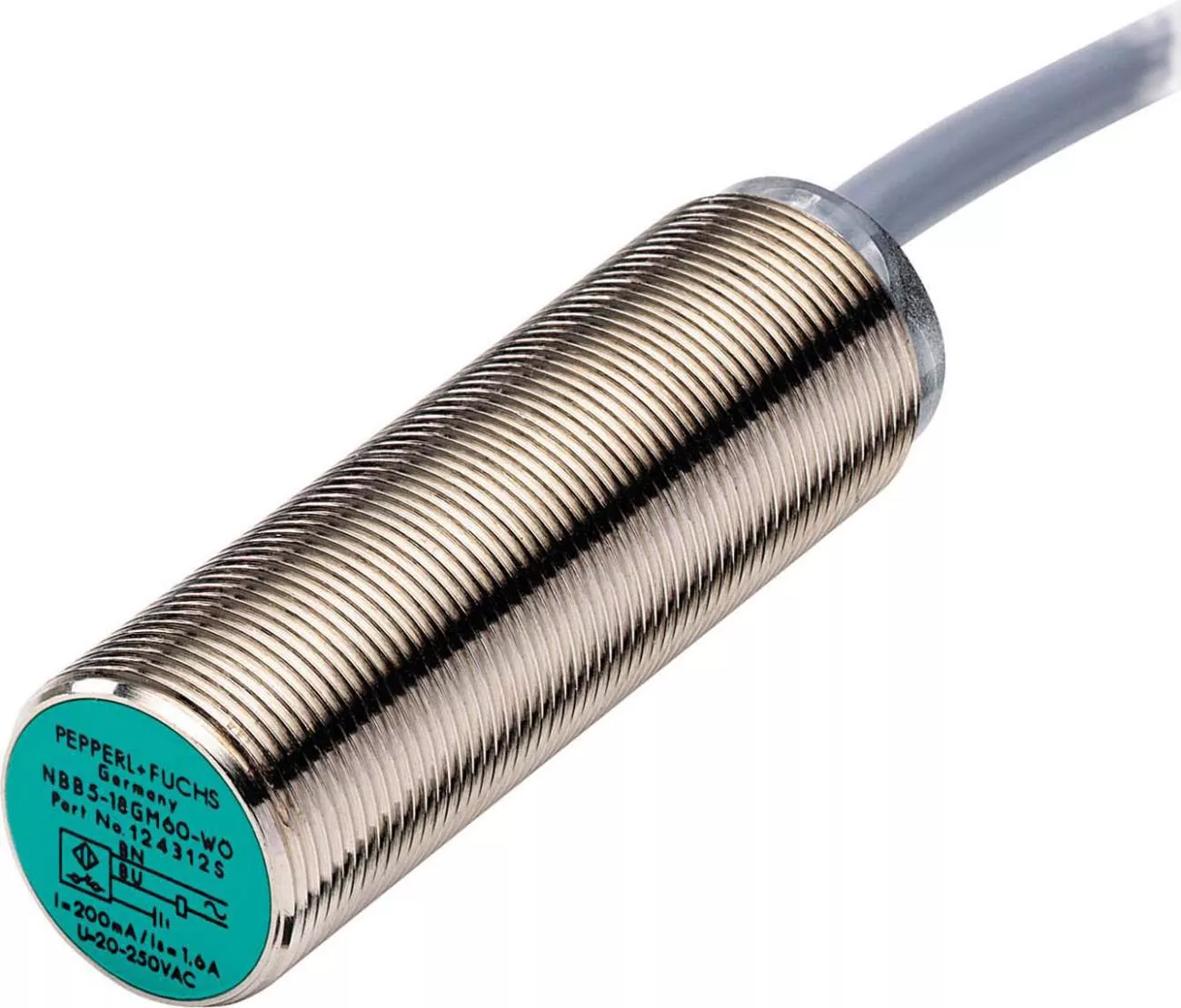

Inductive sensor with brass, nickel-plated housing, PBT sensing face. LED, yellow switching state indicator. It features 5 mm flush and 2-wire AC.
Specifications
| Brand Name | Pepperl+Fuchs | Item Name | Inductive Proximity Sensor |
| Thread Size | M18 x 1 | Sensing Distance | 5 mm |
| Output | Normally Closed | Output Circuit Type | 2-Wire |
| Dimensions | 18 mm L x 18 mm W x 60 mm H | Voltage Rating | 20 – 253 VAC |
| Amperage Rating | 5 – 200 mA | Operating Frequency | 0 – 20 Hz |
| Conductor Size | 0.34 mm² | Degree of Protection | IP67 |
| Indicator Type | LED | Connection Type | 2 m PVC Cable |
| Material | Nickel Plated Brass | Mounting Type | Flush |
| Temperature Rating | -25 to 70 °C | Standards | cULus Listed, cCSAus, CCC Certified, EN 60947-5-2:2007, EN 60947-5-2/A1:2012, IEC 60947-5-2:2007, IEC 60947-5-2 AMD 1:2012 |
