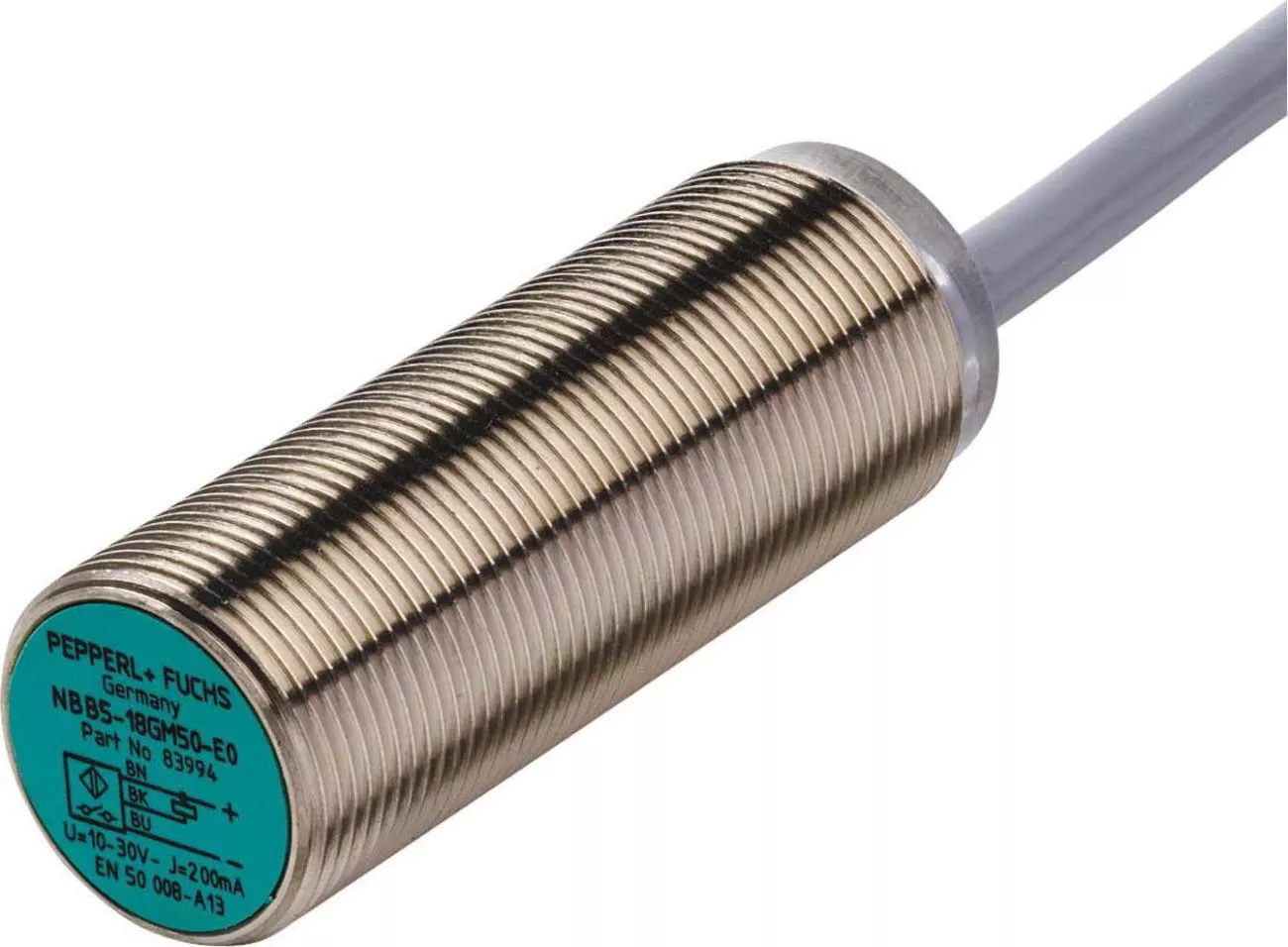

Inductive sensor with brass, nickel-plated housing, PBT sensing face. All direction LED, yellow switching state indicator. It features 5 mm flush.
Specifications
| Brand Name | Pepperl+Fuchs | Item Name | Inductive Proximity Sensor |
| Sensing Distance | 5 mm | Output | Normally Open |
| Output Circuit Type | NPN | Dimensions | 18 mm dia x 50 mm H |
| Voltage Rating | 10 – 30 VDC | Amperage Rating | 0 – 200 mA |
| Operating Frequency | 0 – 800 Hz | Conductor Size | 0.34 mm² |
| Degree of Protection | IP67 | Indicator Type | All Direction LED, Yellow |
| Connection Type | 2 m PVC Cable | Material | Nickel Plated Brass |
| Mounting Type | Flush | Temperature Rating | -25 to 70 °C |
| Standards | cULus Listed, CCC, cCSAus Certified |
