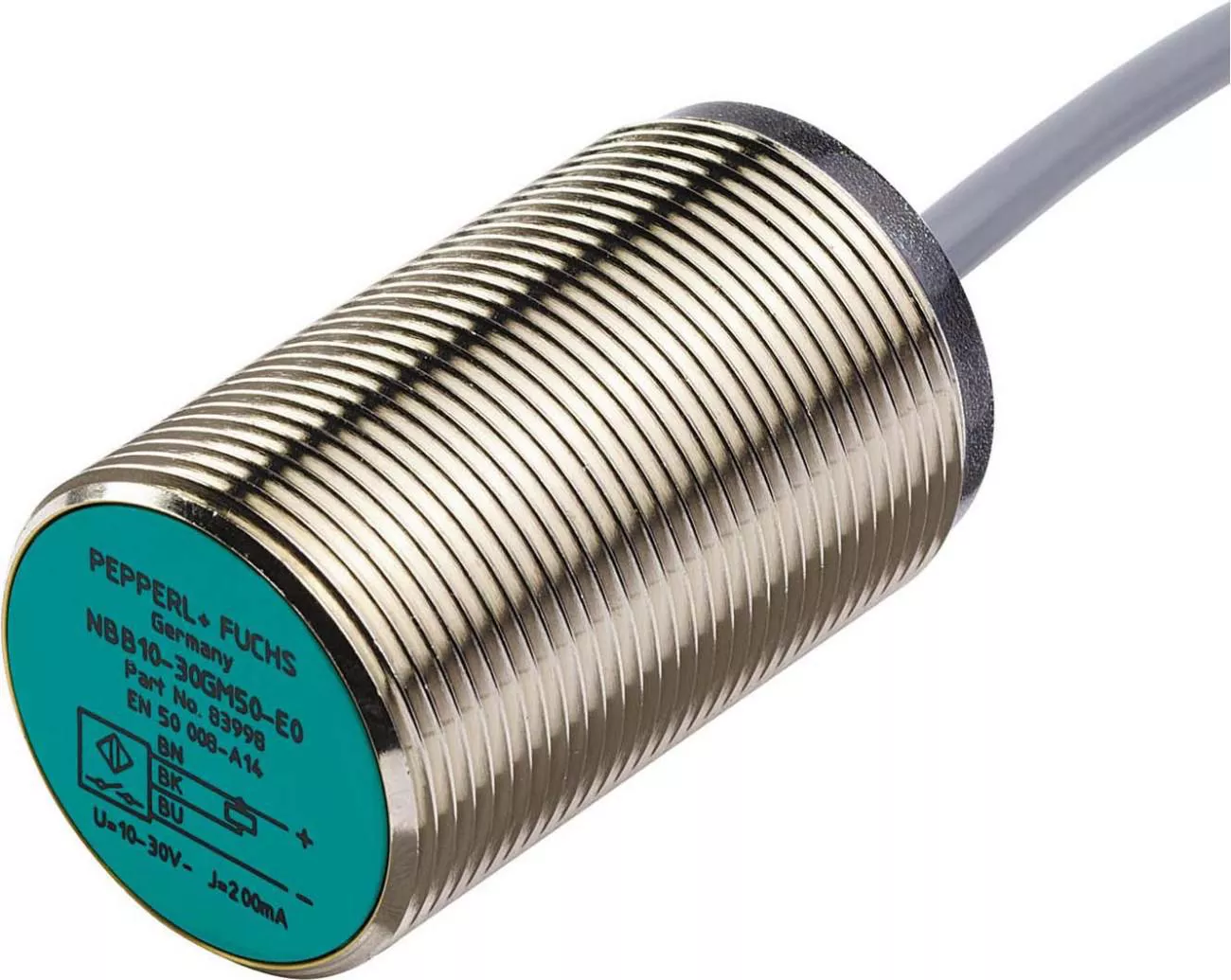

Inductive sensor with brass, nickel-plated housing, PBT sensing face. LED, green are operating voltage indicator, LED, yellow switching state indicator. It features 10 mm flush and 2-wire AC.
Specifications
| Brand Name | Pepperl+Fuchs | Item Name | Inductive Proximity Sensor |
| Sensing Distance | 10 mm | Output | Normally Open |
| Output Circuit Type | 2-Wire | Dimensions | 30 mm dia x 50 mm H |
| Voltage Rating | 20 – 253 VAC | Amperage Rating | 5 – 200 mA |
| Operating Frequency | 0 – 20 Hz | Conductor Size | 0.75 mm² |
| Degree of Protection | IP67 | Indicator Type | LED, Green (Operating Voltage), LED, Yellow (Switching State) |
| Connection Type | 2 m PVC Cable | Material | Nickel Plated Brass |
| Mounting Type | Flush | Temperature Rating | -25 to 70 °C |
| Standards | cULus Listed, CCC, cCSAus Certified |
